ATEX Certified Portable Gas Detector with IP66/IP68 Protection and 24h Battery Life for Multi Gas Detection

Informacion basica
Lugar de origen: PORCELANA
Nombre de la marca: SAFEGAS
Certificación: ATEX/EMC/IECEX
Número de modelo: Micmeta
Cantidad de orden mínima: 1
Precio: Negociable
Detalles de empaquetado: Carton (22*16*11cm)
Tiempo de entrega: 3 días de trabajo
Condiciones de pago: T/T
Capacidad de la fuente: 3000 piezas por mes
Información detallada
Horas de trabajo: Tiempo de espera 24h, tiempo de carga < 6h Método de trabajo: Difusión
Certificación (reglamentaciones de la UE): Se aplicarán las disposiciones del artículo 4 del Reglamento (UE) n.o 1308/2013. Plataforma de calibración: Las operaciones de modificación, prueba de funciones y calibración se pueden realizar en la estación
Transmisión inalámbrica: Función de transmisión Bluetooth (opcional), función de transmisión Lora (opcional) Resolusion: 1% LIE 1PPM 0,1PPM 0,1%VOL
Rango: 0-100 % LEL CO 0-1000 PPM H2S 0-100 PPM O2 0-30 % VOL Batería: 3Batería de litio recargable de 7 V, capacidad de la batería 2300 mA
Tiempo de respuesta (T90): ≤30s Grado de protección: IP66/IP68
Prueba y calibración automáticas después de encendido: Incluido el ensayo automático, la calibración, el auto-cero, el valor máximo (MAX), el valor mínimo Detectado el gas: LEL CO H2S O2
peso: 240 g (con batería de litio) Registro de datos: 1000 conjuntos de registros de datos y 100 conjuntos de registros de eventos
Resaltar:

ATEX portable gas detector

,

coal mine toxic gas alarm

,

combustible gas safety monitor


Descripción de producto

Certified ATEX Portable Gas Alarm Detector For Coal Mine Toxic And Combustible Gas Safety Monitoring
Product Overview

Portable multi model LEL CO H2S O2 gas detector with bump test and calibration

MicMeta is a multi-gas detector that has been certified by IECEx, ATEX, and EMC. It's lightweight and compact with standard gas types including multi 4 (CO H2S O2 LEL) gases and support for hundreds of selectable gases. Features include standard man-down alarm and data logging function, with optional Lora and Bluetooth wireless data transmission for easy data access.

Product Specifications
Parameter Specification
Sampling method Diffusion
Gas type LEL CO H2S O2
Measure range 0-100%LEL CO 0-1000PPM H2S 0-100PPM O2 0-30%VOL
Resolution 1%LEL 1PPM 0.1PPM 0.1%VOL
Response time ≤60S (T90)
Precision ≤±5%FS or ±10% (depends on the specific sensor)
Language Chinese/English
Automatically test and calibrate after power-on Including auto-test, calibration, auto-zero, maximum value (MAX), minimum value (MIN), STEL, TWA value
Unit PPM and mg/m³ can be switched and displayed by one key, and the concentration value is automatically converted by the system
Display Segment code LCD display
Calibration platform Modification, function testing and calibration operations can be performed on DKM-MicMeta docking station (optional)
Data record 1000 sets data records and 100 sets events records
Alarm 95dB buzzer (@30cm), vibration alarm and flashing red bars and alarm status indication on the screen, alarm latched; diagnostic alarm and battery under voltage alarm, man down alarm, alarm set points for all sensors are user adjustable.
Battery 3.7V rechargeable lithium battery, battery capacity 2300mA
Working hours Standby time 18h, charging time <6h
Wireless transmission Bluetooth transmission function (optional), Lora transmission function (optional)
Explosion-proof grade CNEX:Ex ia IIC T4 Ga
(EU regulations) 2004/108/EC(EMC), 94/9/EC(ATEX), CE
Protection grade IP66/IP68
Working temperature -20°C~55°C
Humidity 0-95%RH (non-condensing)
Environmental pressure 86~106Kpa
Size 113*60*32mm (length * width * height)
Weight 200g (with lithium battery)
Applications
  • Underground coal mine tunnel toxic gas real time inspection
  • Mining working face combustible gas leakage early warning
  • Mine confined space oxygen deficiency concentration detection
  • Coal transportation roadway toxic gas safety patrol monitoring
  • Mine goaf harmful gas accumulation risk inspection
  • Underground maintenance workspace gas safety pre testing
  • And more...
Product Images

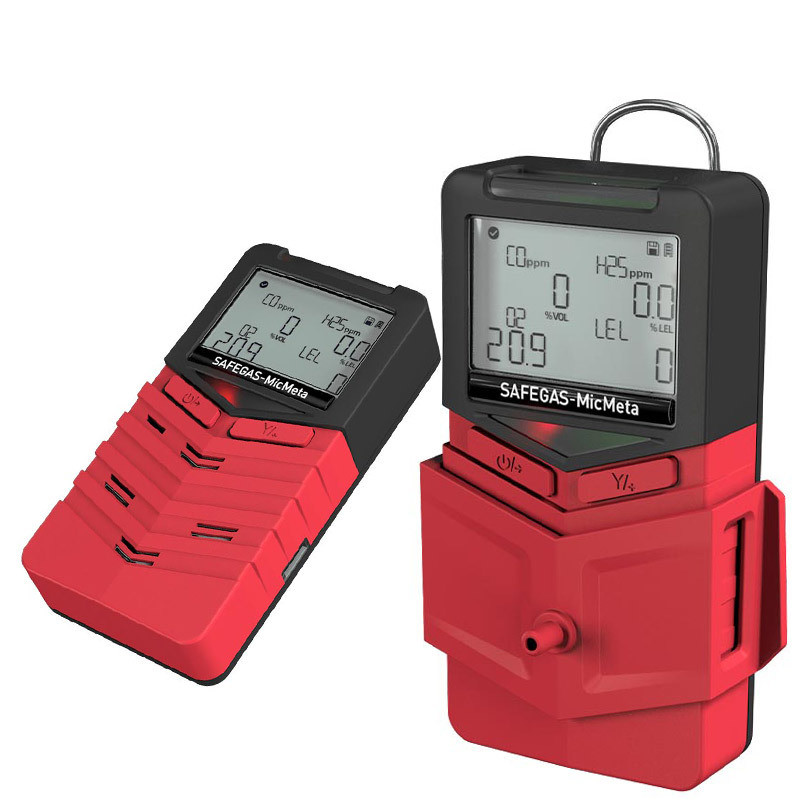

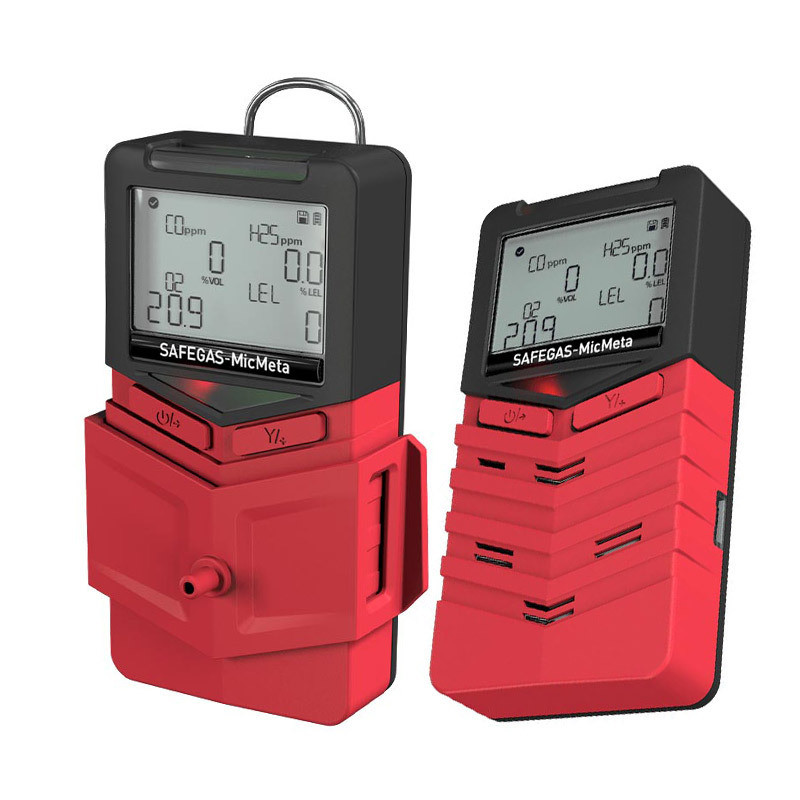

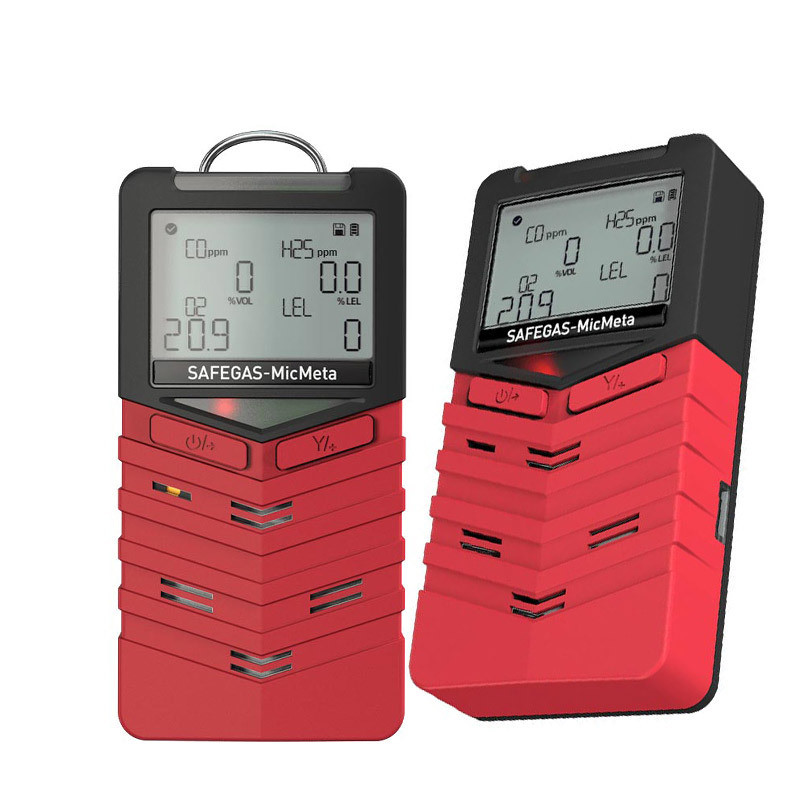

MicMeta Portable Gas Detector Front View

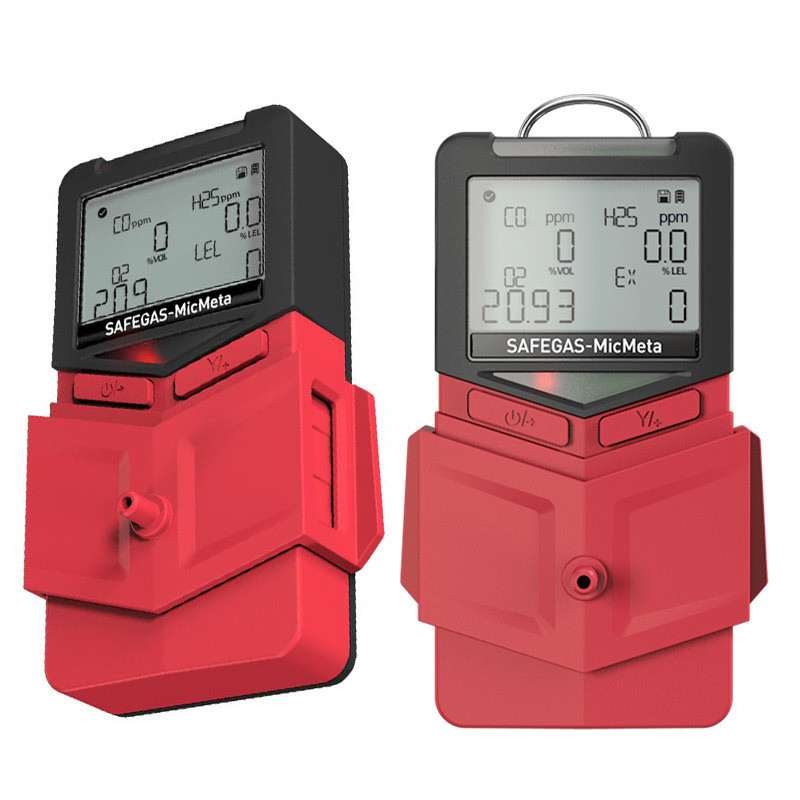

MicMeta Portable Gas Detector Side View
Product Advantages
IP66/IP68 water & dust resistant and 1.5 meters drop resistant case, rugged and durable designs
Compact, lightweight, small size with back clip, ergonomic and wearable design
Standard man down alarm, password protection, ID identification function
Real time value, TWA, STEL, MAX, MIN multiple numerical display
With self-test function, which can improve safety by automatic self-test
Standard 1000 data records and 100 events records
Support firmware upgrade remotely
With docking station to perform daily bump test and calibration (Optional)
Wireless data transmission including Lora, Bluetooth (Optional)
Low power consumption, battery run time is up to 24 hours per charge
