| Lugar de origen: | Porcelana |
|---|---|
| Nombre de la marca: | SAFEGAS |
| Certificación: | ISO CE CNEX |
| Número de modelo: | Sky3000 |
| Cantidad de orden mínima: | 1 |
| Precio: | Negociable |
| Detalles de empaquetado: | Caja de cartón |
| Tiempo de entrega: | 3 días de trabajo |
| Condiciones de pago: | T/T, Unión Occidental |
| Capacidad de la fuente: | 1000 piezas por mes |
| gas: | O2 LEL DEL CO H2S | Rango de medida: | 0-1000 PPM 0-100 PPM 0-30 % VOL 0-100 % LIE |
|---|---|---|---|
| Resolución: | 1PPM 0,1PPM 0,1% VOL 1% LIE | Tipo de sensor: | Electroquímico |
| Método de muestreo: | Difusión | Material: | ABS + funda de cuero |
| Mostrar: | Pantalla gráfica LCD monocromática de matriz de puntos 128*128 | Modo de alarma: | sonido, luz y vibración |
| Batería: | Batería de litio recargable de 3,7 V, con capacidad de 2500 mAh | unidad: | ppm, mg/m3, %VOL, %LEL |
| Tamaño de paquete único:: | 131cm*83cm*35cm | Peso:: | 240g |
| Grado de protección: | IP65 |

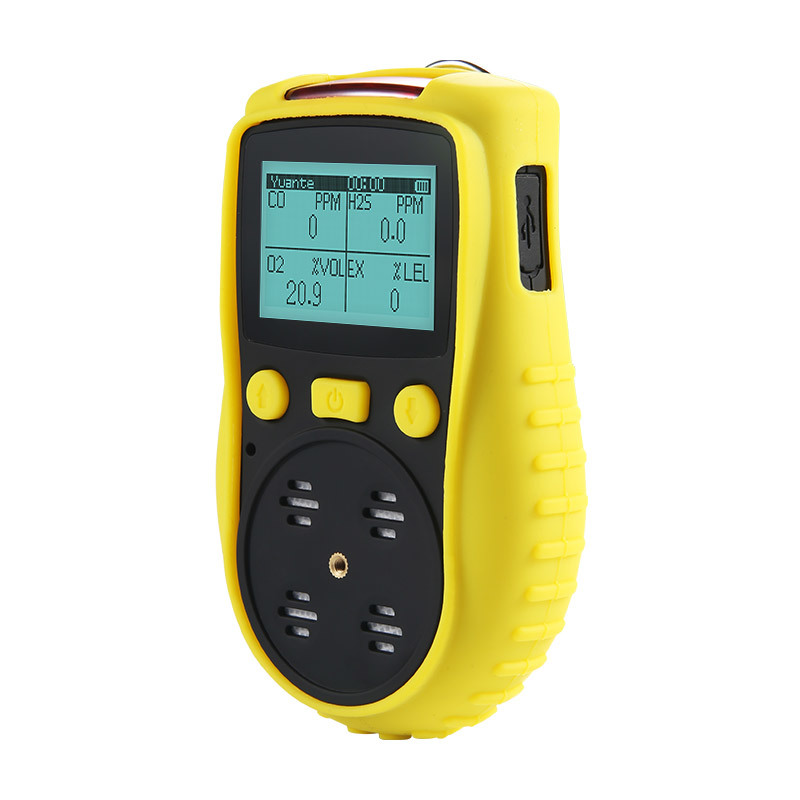

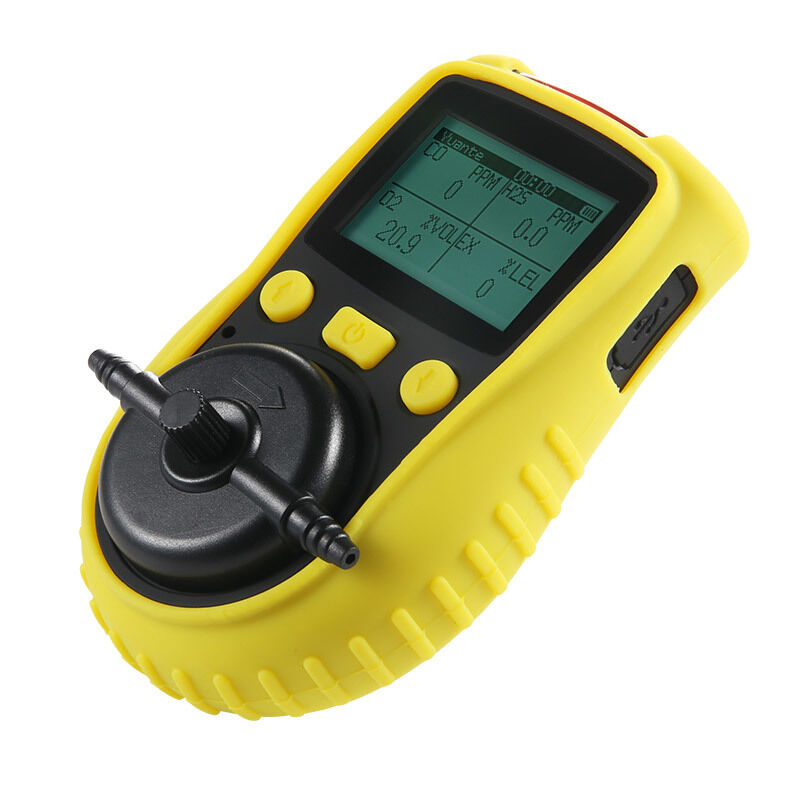

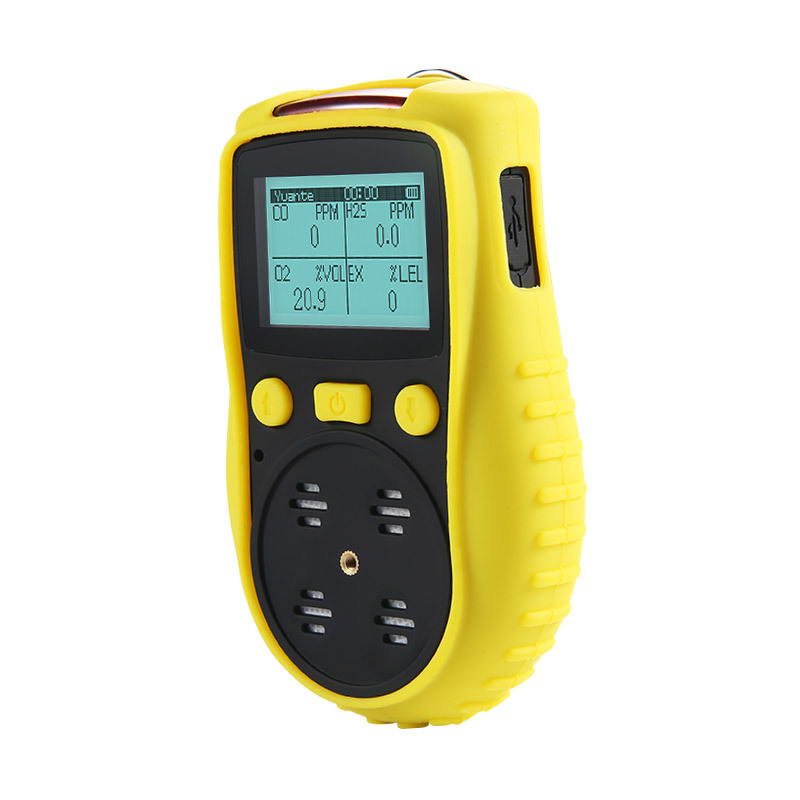

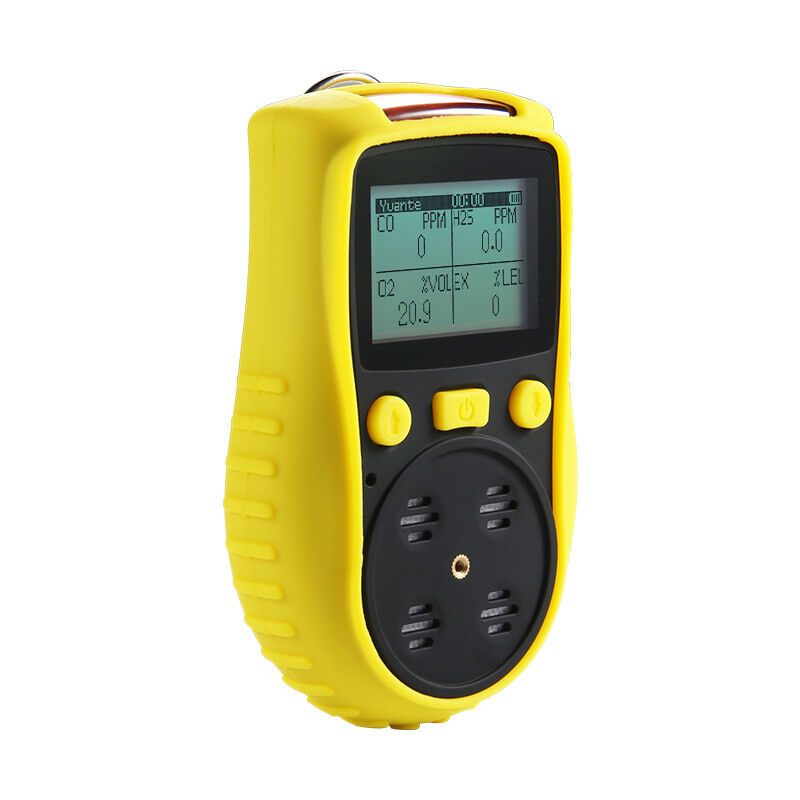

The YT-1200H Portable Gas Detector is a high-precision, compact instrument designed for industrial safety applications. Utilizing diffusion detection principles, this multi-gas detector offers reliable monitoring of toxic gases, flammable gases, and oxygen levels in hazardous environments.
The YT-1200H series represents a mini-sized, cost-effective portable gas detector with high accuracy. Designed for ease of operation with comprehensive functionality, it features a back clip and silicone protective case, making it suitable for various industrial situations.
| Parameter | Value |
|---|---|
| Gas Detected | Specified according to application |
| Detection Principle | Diffusion |
| Sensor Type | Specified according to application |
| Measuring Range | Specified according to application |
| Resolution | Specified according to application |
| Precision | <1-5% F.S. |
| Display | Monochrome dot matrix 128×128 LCD graphic display |
| Backlight | Settable time; auto-on during alarm |
| Data Logging | Optional: 100,000 readings (10-3600 sec interval) |
| Event Logging | 100 event records (standard, viewable on device) |
| Language | Chinese / English |
| Alarm Type | Sound, light, vibration |
| Battery | 3.7V rechargeable lithium battery, 2500mAh |
| Working Time | 14h continuous (4 gases); 200h (without LEL sensor) |
| Charger | Travel charger; charging time 4-6h |
| Explosion-Proof Grade | Ex ia IIC T4 |
| Protection Grade | IP65 |
| Working Temperature | 10°C - 50°C |
| Working Humidity | 15 - 95% RH |
| Housing Material | ABS + leather case |
| Dimensions (L × W × H) | 131 × 83 × 35 mm |
| Weight | 240g |
Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems. With 16 years of industry experience, we provide comprehensive solutions for various sectors including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.
