Inicio > Productos> Solo detector de gas> High-precision Fixed H2S Gas Detector with Explosion-proof Design and Electrochemical Sensor for Industrial Safety

High-precision Fixed H2S Gas Detector with Explosion-proof Design and Electrochemical Sensor for Industrial Safety

High-precision Fixed H2S Gas Detector with Explosion-proof Design and Electrochemical Sensor for Industrial Safety
High-precision Fixed H2S Gas Detector with Explosion-proof Design and Electrochemical Sensor for Industrial Safety
High-precision Fixed H2S Gas Detector with Explosion-proof Design and Electrochemical Sensor for Industrial Safety High-precision Fixed H2S Gas Detector with Explosion-proof Design and Electrochemical Sensor for Industrial Safety High-precision Fixed H2S Gas Detector with Explosion-proof Design and Electrochemical Sensor for Industrial Safety High-precision Fixed H2S Gas Detector with Explosion-proof Design and Electrochemical Sensor for Industrial Safety
Informacion basica
Lugar de origen: Porcelana
Nombre de la marca: SAFEGAS
Certificación: CNEX CE ISO9001, ISO14001, ISO45001
Número de modelo: YT-95H
Cantidad de orden mínima: 1
Precio: Negociable
Detalles de empaquetado: Caja de cartón
Tiempo de entrega: 3 días de trabajo
Condiciones de pago: T/T, Unión Occidental
Capacidad de la fuente: 1000 piezas por mes
Mejor precio Contactar ahora
Información detallada
Detectado el gas: H2S Rango: 0-100ppm
Resolusion: 0,1 ppm Tipo de sensor: Electroquímico
Código HS: 9027100090 Dimensiones: Las medidas siguientes se aplicarán a los vehículos de las categorías A y B:
Peso: menos de 1,6 kg Grado a prueba de explosiones: Ex d IIC T6 GB
Mostrar: LCD Repetibilidad: ≤ ± 1%
Cero turnos (F.S./año): ≤ ± 1%

Descripción de producto

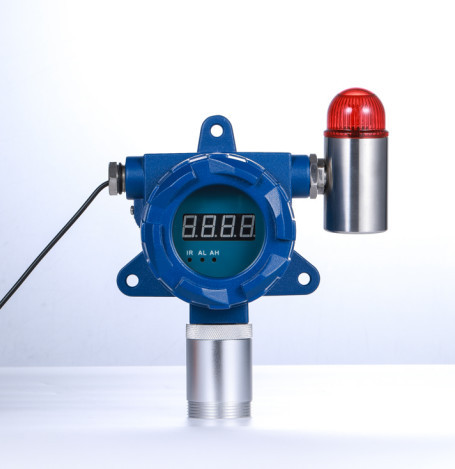

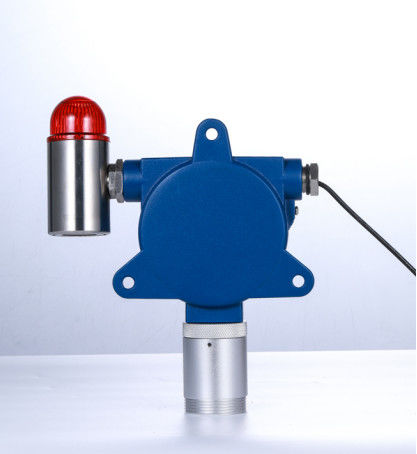

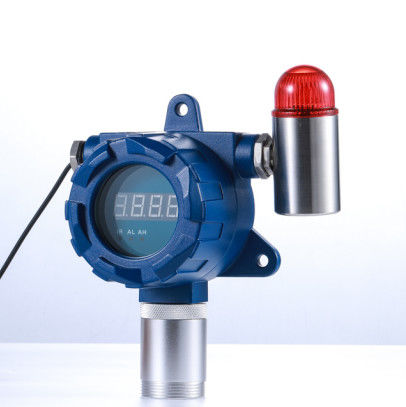

YT-95H-A Fixed H2S Hydrogen Sulfide Gas Detector
High-precision fixed H2S gas detector with diffusion detection principle, designed for industrial safety applications to protect workers from H2S leakage using smart industrial gas alarm system.
Product Overview
YT-95H/YT-95H-A series is a cost-effective explosion-proof transmitter for the detection of flammable gases and toxic gases. Features a 3-wire 4 to 20 mA analog output with relays and RS485 Modbus protocol, making it compatible with most control systems. Third-party products such as horns, warning lights and fans are compatible with our components and can be integrated into the system. With optional wireless function, operators can view data on laptop, mobile phone or cloud system remotely.
Key Features
  • Online monitoring with sound/light alarm (Optional): 24h continuous monitoring with real-time data display. High/low alarm with sound and light, sound >90dB, with settable alarm points
  • Non-contacted device control: Infrared ray controller for remote control of alarm point settings, zero calibration, and address modification
  • Variety of installation methods: 4-20mA current signal output compatible with different controllers. RS485 MODBUS signal output. Relay signal output to control ventilators, generators or other external devices

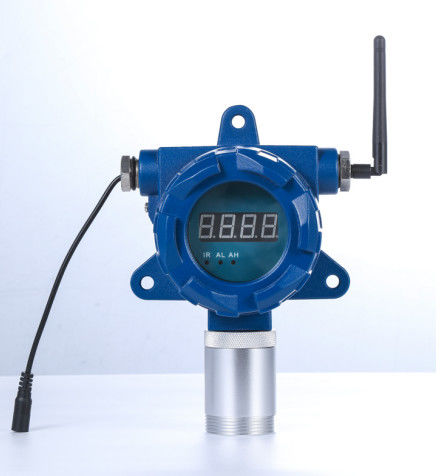

  • Data transmission: Compatible with PC software for data transmission to computer for remote monitoring. Wireless data transmission including Lora, 4G (Optional)
  • High quality case: Die-cast aluminum case, strong and durable. Stainless steel case optional. IP65 protection degree, water-proof, dust-proof, explosion-proof
Technical Specifications
Parameter Details
Gas Detected H2S
Detection Principle Electrochemical
Measure Range Specified according to application
Resolution Specified according to application
Accuracy ≤±2-5%FS (depending on the specific sensor)
Response Time (T90) 15-30s (depending on the specific sensor)
Repeatability ≤±1%
Zero Shift ≤±1% (F.S./year)
Display 4 digits Nixie tube display
Connection Mode G1/2 external thread explosion-proof flexible pipe
Thread Size M45×2mm
Temperature -20℃ ~ 50℃
Humidity 0-95%RH (no condensation)
Material Case Die-cast aluminum, Sensor housing: aluminum alloy or 316 stainless steel
Power 12-36V DC
Dimensions 180×150×90mm
Weight ≤1.6kg
Explosion-proof Grade Ex d IIC T6 Gb
High-precision Fixed H2S Gas Detector with Explosion-proof Design and Electrochemical Sensor for Industrial Safety 0 High-precision Fixed H2S Gas Detector with Explosion-proof Design and Electrochemical Sensor for Industrial Safety 1 High-precision Fixed H2S Gas Detector with Explosion-proof Design and Electrochemical Sensor for Industrial Safety 2 High-precision Fixed H2S Gas Detector with Explosion-proof Design and Electrochemical Sensor for Industrial Safety 3 High-precision Fixed H2S Gas Detector with Explosion-proof Design and Electrochemical Sensor for Industrial Safety 4 High-precision Fixed H2S Gas Detector with Explosion-proof Design and Electrochemical Sensor for Industrial Safety 5 High-precision Fixed H2S Gas Detector with Explosion-proof Design and Electrochemical Sensor for Industrial Safety 6
Manufacturer Profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems. With 16 years of industry experience, we provide comprehensive solutions for various sectors including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.
Product Line
Portable Detectors
Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000, SKY1000, MAXMETA
Fixed Systems
YT-95H, YT-98H, YT-96H, SG100, SG200
Controllers
YT-1100H, YT-1600H, YT-1800H
Particle Counter
AQD5000, SKY6000-PM, SKY2000-PM
