Name: Explosion Proof Fixed SO2 Gas Detector with Electrochemical Sensor and 0-100PPM Range for Industrial Safety
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: YT-95H
Price: 1,037.00 USD
Availability: InStock

Información detallada

Detectado el gas:	SO2	Rango:	0-100ppm
Resolusion:	0,1 ppm	Tipo de sensor:	Electroquímico
Código HS:	9027100090	Dimensiones:	Las medidas siguientes se aplicarán a los vehículos de las categorías A y B:
Peso:	menos de 1,6 kg	Grado a prueba de explosiones:	Ex d IIC T6 GB
Mostrar:	LCD	Repetibilidad:	≤ ± 1%
Cero turnos (F.S./año):	≤ ± 1%

Descripción de producto

Protect Industrial Workers With Explosion Proof SO2 Leak Detection Equipment Fixed Gas Detector

YT-95H-A Fixed SO2 Gas Detector

High-precision Fixed SO2 Gas Detector with diffusion detection principle, designed for industrial safety applications.

Product Overview

YT-95H/YT-95H-A series is a cost-effective explosion-proof transmitter for the detection of flammable gases and toxic gases. Features 3-wire 4 to 20 mA analog output with relays and RS485 Modbus protocol for compatibility with most control systems. Third-party components such as horns, warning lights, and fans can be integrated into the system. Optional wireless function allows operators to view data remotely on laptops, mobile phones, or cloud systems.

Key Features

Online Monitoring with Sound/Light Alarm (Optional): 24-hour continuous monitoring with real-time data display. High/low alarm with sound (>90dB) and light, with settable alarm points.
Non-Contacted Control: Infrared ray controller enables remote control of alarm point settings, zero calibration, and address modification.
Variety of Installation Methods: 4-20mA current signal output compatible with different controllers. RS485 MODBUS signal output. Relay signal output for controlling ventilators, generators, or other external devices.

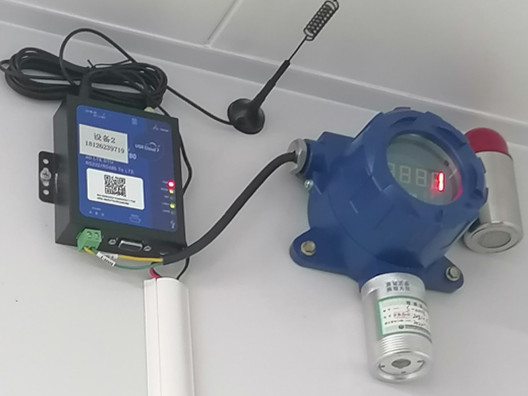

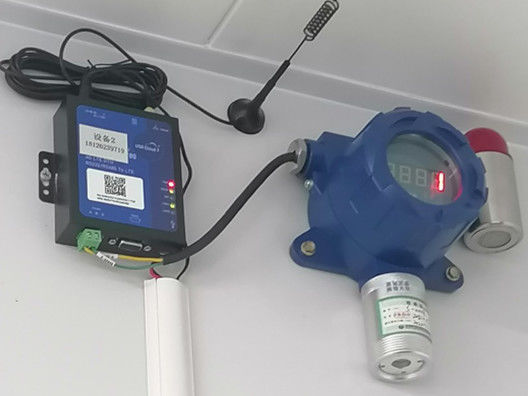

Data Transmission: Compatible with PC software for data transmission to computers. Optional wireless data transmission including Lora and 4G for remote monitoring.
High Quality Case: Die-cast aluminum case, strong and durable. Optional stainless steel case available. IP65 protection degree - water-proof, dust-proof, explosion-proof.

Technical Specifications

Parameter	Details
Gas Detected	SO2
Detection Principle	Electrochemical
Measure Range	Specified according to application
Resolution	Specified according to application
Accuracy	≤±2-5%FS (depending on the specific sensor)
Response Time (T90)	15-30s (depending on the specific sensor)
Repeatability	≤±1%
Zero Shift	≤±1% (F.S./year)
Display	4 digits Nixie tube display
Connection Mode	G1/2 external thread explosion-proof flexible pipe
Thread Size	M45*2mm
Temperature	-20℃ ~ 50℃
Humidity	0-95%RH (no condensation)
Material Case	Die-cast aluminum, Sensor housing: aluminum alloy or 316 stainless steel
Power	12-36V DC
Dimensions	180×150×90mm
Weight	≤1.6kg
Explosion-proof Grade	Ex d IIC T6 Gb

Explosion Proof Fixed SO2 Gas Detector with Electrochemical Sensor and 0-100PPM Range for Industrial Safety 0

Explosion Proof Fixed SO2 Gas Detector with Electrochemical Sensor and 0-100PPM Range for Industrial Safety 1

Explosion Proof Fixed SO2 Gas Detector with Electrochemical Sensor and 0-100PPM Range for Industrial Safety 2

Explosion Proof Fixed SO2 Gas Detector with Electrochemical Sensor and 0-100PPM Range for Industrial Safety 3

Explosion Proof Fixed SO2 Gas Detector with Electrochemical Sensor and 0-100PPM Range for Industrial Safety 4

Explosion Proof Fixed SO2 Gas Detector with Electrochemical Sensor and 0-100PPM Range for Industrial Safety 5

Explosion Proof Fixed SO2 Gas Detector with Electrochemical Sensor and 0-100PPM Range for Industrial Safety 6

etiqueta:

Lugar de origen:	Porcelana
Nombre de la marca:	SAFEGAS
Certificación:	CNEX CE ISO9001, ISO14001, ISO45001
Número de modelo:	YT-95H

Cantidad de orden mínima:	1
Precio:	Negociable
Detalles de empaquetado:	Caja de cartón
Tiempo de entrega:	3 días de trabajo
Condiciones de pago:	T/T, Unión Occidental
Capacidad de la fuente:	1000 piezas por mes
