Información detallada

Principio:	Electroquímico	Detectado el gas:	CO
Principio de detección:	Difusión	Rango de medida:	0-1000ppm
Resolución:	1 ppm	Exactitud:	≤ ± 2-5%FS
Tiempo de respuesta (T90):	15 ~ 30s	Modo de alarma:	Alarma de sonido, luz y vibración
Tipo de alarma:	Alarma baja, alarma alta, stel, twa, batería baja	Modo de fuente de alimentación::	Batería seca de 3.6V
Certificación a prueba de explosión:	Iecex, atex	Clase de protección:	IP66/68
Temperatura de trabajo:	-20 ℃ ~ 55 ℃	Humedad de trabajo (no condensación):	0 ~ 95%RH
peso:	125 g (con clip y batería)

Descripción de producto

Portable CO Gas Detector IECEx ATEX Certified High Accuracy 0-1000ppm Mini Size

Product Overview

The MiniMeta is a highly reliable and versatile single-gas detector with IECEx, ATEX, and EMC certifications, ensuring compliance with international safety standards for use in explosive atmospheres and electromagnetic environments.

Technical Specifications

Parameter	Specification
Detect Gas	Carbon Monoxide (CO)
Sensor Type	Electrochemical
Sampling Method	Diffusion
Measure Range	0-1000PPM
Resolution	1PPM
Precision	≤± 3% F.S.
Response Time	≤30s(T90)
Display	Gas name, concentration unit, measured value, battery level
Alarm Mode	Sound, light, vibration alarm with customizable high/low settings
Operating Language	Chinese/English
Size	90×60×33mm
Weight	125g
Working Temperature	-20ºC to 50ºC
Working Humidity	0-95%RH

Key Features

Powerful Detection Capability: Detects hundreds of user-defined toxic gases including carbon monoxide and hydrogen sulfide with high precision
User-Friendly Design: Intuitive interface with simple controls and clear displays for easy operation
Replaceable Components: Both battery and sensor are replaceable for long-term operation and reduced maintenance costs
Cost-Effective Solution: High-quality, affordable gas monitoring system designed for long-term ownership

Product Images

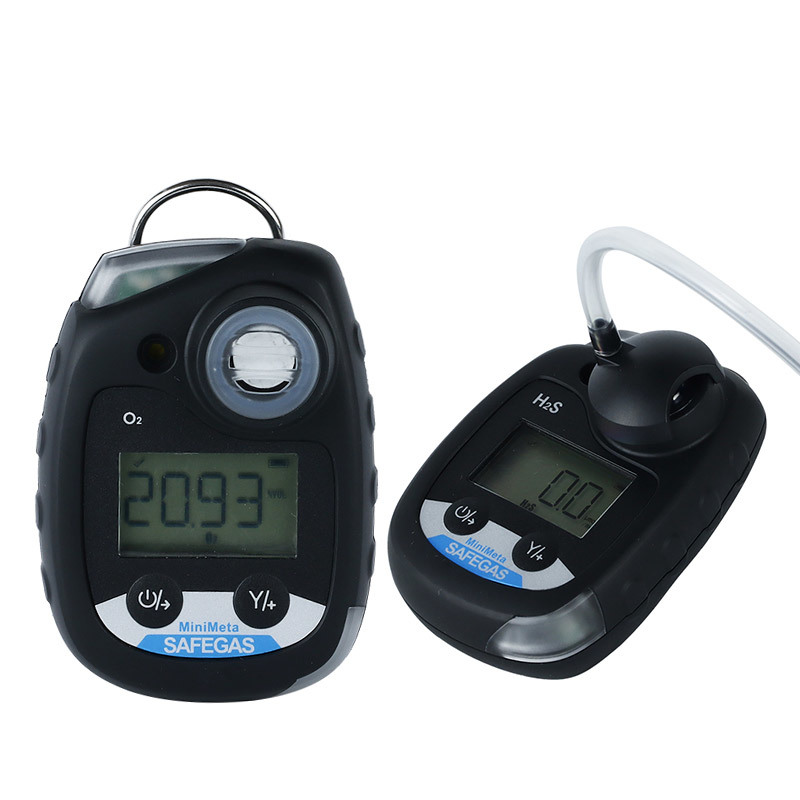

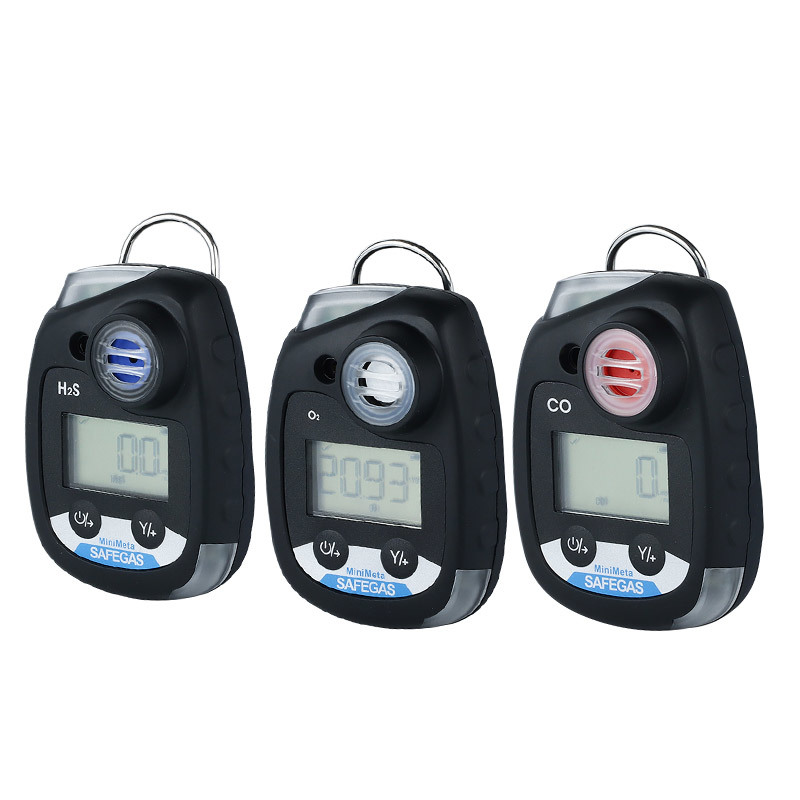

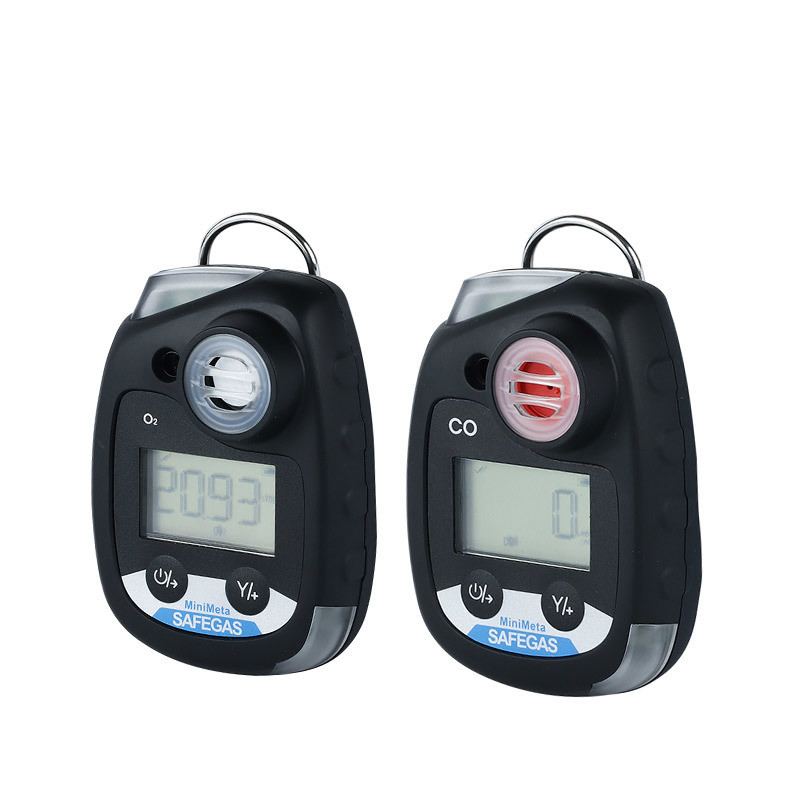

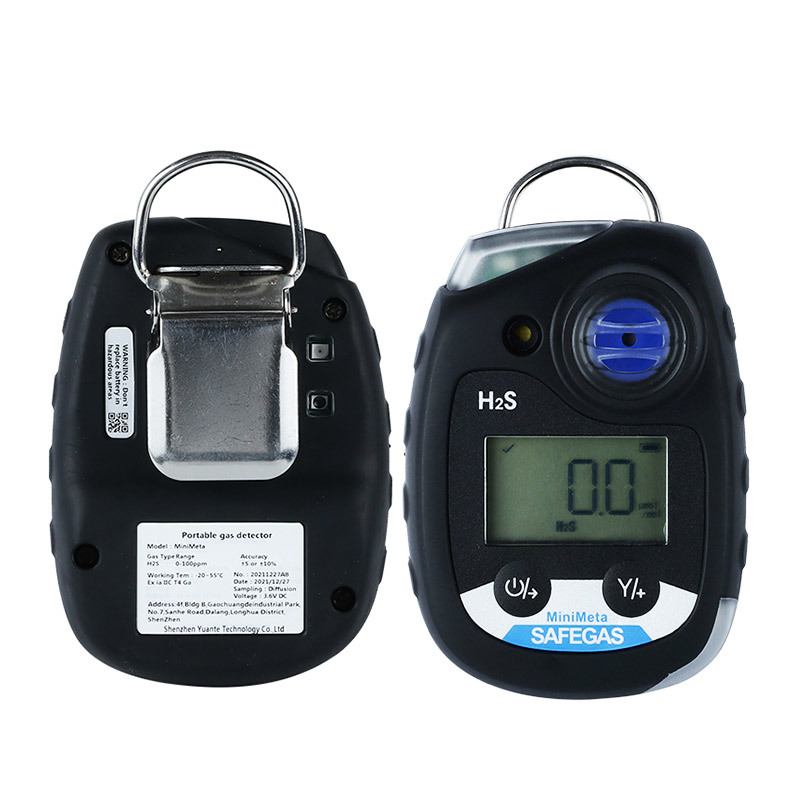

Front View

Side View

Display Close-up

With Accessories

Product Advantages

IP68 water- and dust-resistant case
Low power consumption with 2 years standby time
Optional docking station for daily bump test and calibration
Event and data logging function
Self-test function for improved safety
Small size, lightweight with back clip for easy carrying
95db@30cm buzzer, LED light and vibration alarms
Real time value, TWA, STEL, MAX, MIN multiple display

Standard Package

Portable gas detector: 1 piece
Calibration cap: 1 piece
User manual: 1 piece
Certificate of conformity/Warranty card: 1 piece

Why Choose Us?

R & D Experience: Over 25 years in gas detection technology
Company Certifications: ISO9001, ISO45001
Product Certifications: IECEx, ATEX, CE
Delivery Time: 5-7 days
Production Capacity: 80,000 units yearly
Service: Professional sales staff providing 24/7 support

Company Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production and sales of gas detection equipment and systems for 16 years. We provide complete production lines and solutions for various industries including Oil, Chemical, Medicine, Energy, Environmental Protection, and more.

Product Line

Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000

Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200

Controller panels: YT-1100H, YT-1600H

Complete Product Line

Certifications

IECEXATEXCETEST ReportISO 9001ISO 45001

Our products meet international explosion-proof standards comparable to brands but with competitive pricing.

Certification Documents

Company Partners

We proudly serve major international companies including Huawei, Coca-Cola, Samsung, Nestle and more.

Our Valued Partners

Frequently Asked Questions

Are you a manufacturer or trading company?

We are a professional manufacturer specializing in gas detectors for more than 10 years.

What is the MOQ?

Usually it is 1 piece.

How about the quality of your products?

Our products use imported sensors and components and are fully certified.

How long is the warranty time?

The warranty period is 1 year from factory, with lifetime maintenance provided.
