Name: Portable Multi Gas Detector with Fast Response ≤30S IP66/IP68 Waterproof and Bluetooth Lora Wireless Transmission
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: Micmeta
Price: 2,210.00 USD
Availability: InStock

Información detallada

Método de trabajo:	Difusión	Tiempo de respuesta (T90):	≤30s
Registro de datos:	1000 conjuntos de registros de datos y 100 conjuntos de registros de eventos	Batería:	3Batería de litio recargable de 7 V, capacidad de la batería 2300 mA
Transmisión inalámbrica:	Función de transmisión Bluetooth (opcional), función de transmisión Lora (opcional)	Horas de trabajo:	Tiempo de espera 24h, tiempo de carga < 6h
Certificación:	ATEX/IECEx/EMC	Grado de protección:	IP66/IP68
peso:	240 g (con batería de litio)

Descripción de producto

Portable Multi Gas Detector Fast Response 4 in 1 Detector O2 H2S CO LEL Data Logging

Product Overview

MicMeta is a multi-gas detector certified by IECEx, ATEX, and EMC. This lightweight, compact device features standard detection for CO, H2S, O2, and LEL gases, with support for hundreds of selectable gases. Includes standard man-down alarm and data logging functions, with optional Lora and Bluetooth wireless data transmission for easy data access.

Product Specifications

Sampling method	Diffusion
Gas type	H2S LEL O2 CO
Measure range	Customized
Resolution	Customized
Response time	≤60S (T90)
Precision	≤±5%FS or ±10% (depends on specific sensor)
Language	Chinese/English
Automatically test and calibrate after power-on	Including auto-test, calibration, auto-zero, maximum value (MAX), minimum value (MIN), STEL, TWA value
Unit	PPM and mg/m³ can be switched and displayed by one key, with automatic concentration value conversion
Display	Segment code LCD display
Calibration platform	Modification, function testing and calibration operations can be performed on DKM-MicMeta docking station (optional)
Data record	1000 sets data records and 100 sets events records
Alarm	95dB buzzer (@30cm), vibration alarm and flashing red bars with alarm status indication on screen, alarm latched; diagnostic alarm and battery under voltage alarm, man down alarm, alarm set points for all sensors are user adjustable
Battery	3.7V rechargeable lithium battery, battery capacity 2300mA
Working hours	Standby time 18h, charging time <6h
Wireless transmission	Bluetooth transmission function (optional), Lora transmission function (optional)
Explosion-proof grade	CNEX:Ex ia IIC T4 Ga
EU regulations	2004/108/EC(EMC), 94/9/EC(ATEX), CE
Protection grade	IP66/IP68
Working temperature	-20°C~55°C
Humidity	0-95%RH (non-condensing)
Environmental pressure	86~106Kpa
Size	1136032mm (length * width * height)
Weight	200g (with lithium battery)

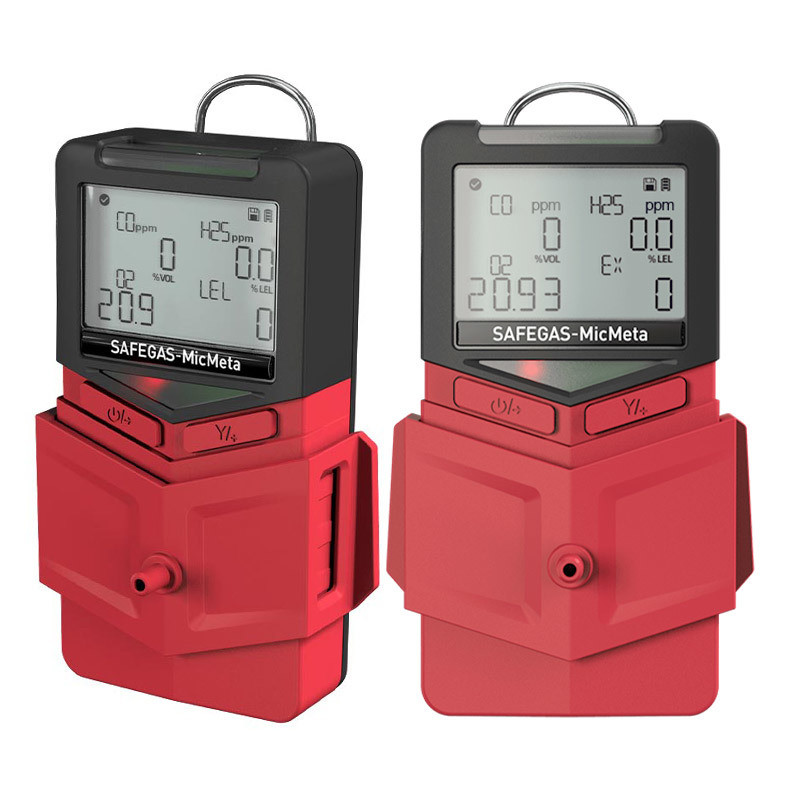

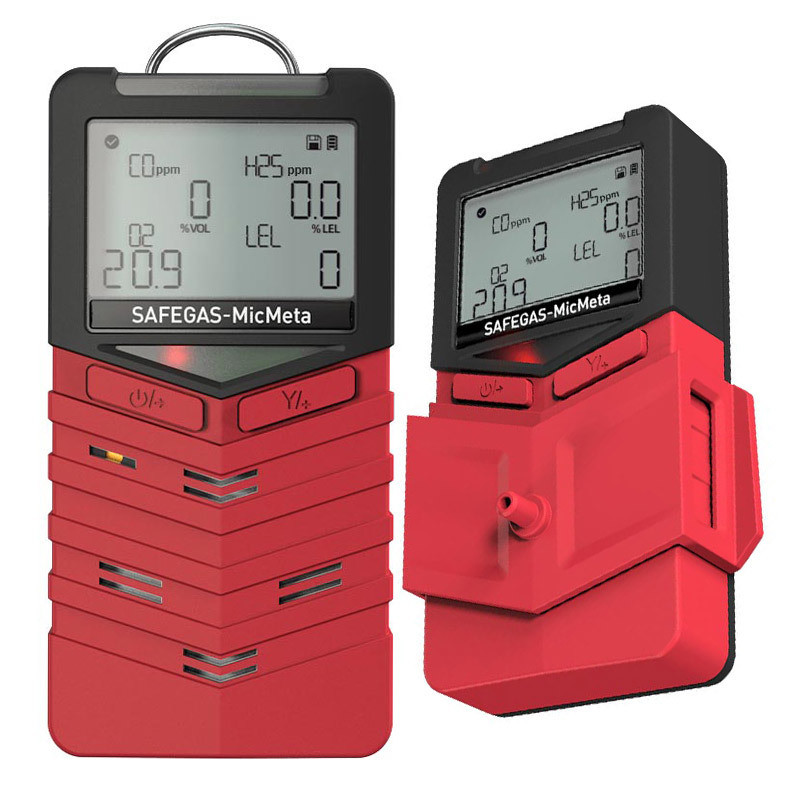

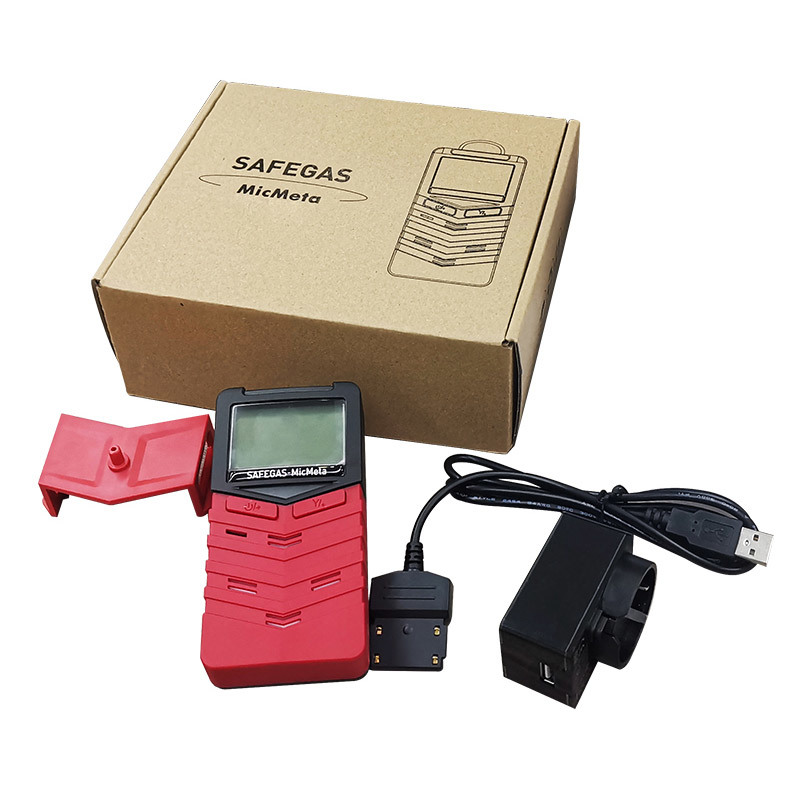

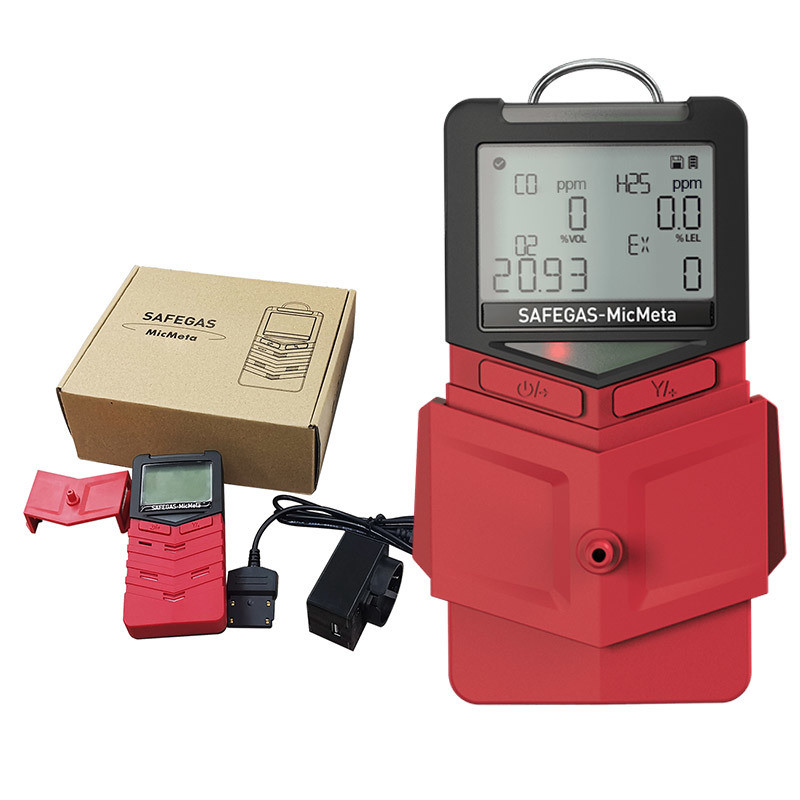

Product Images

Product Advantages

IP66/IP68 water & dust resistant and 1.5 meters drop resistant case, rugged and durable designs
Compact, lightweight, small size with back clip, ergonomic and wearable design
Standard man down alarm, password protection, ID identification function
Real time value, TWA, STEL, MAX, MIN multiple numerical display
With self-test function, which can improve safety by automatic self-test
Standard 1000 data records and 100 events records
Support firmware upgrade remotely
With docking station to perform daily bump test and calibration (Optional)
Wireless data transmission including Lora, Bluetooth (Optional)
Low power consumption, battery run time is upto 24 hours per charge

Company Information

Safegas is a company that focuses on the design, production and sales of environmental monitoring equipment and systems for 16 years. With "gas detector" as the core product, we have complete production lines and solutions for various industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, and Household Appliances.

For years, Safegas has maintained the management concept "Market is orientation. Innovation is motivation. Quality to survival. Development to growth." With friendly, open, and strict corporate culture and standardized management, Safegas has gathered talented professionals and built strong management and R&D teams.

Through years of measurement experience and Safegas solutions, combined with independent research, cooperative development, and learning overseas latest technology, Safegas products are domestically advanced and can compete with international brands. We continuously seek development and progress to meet diversified customer demands.
