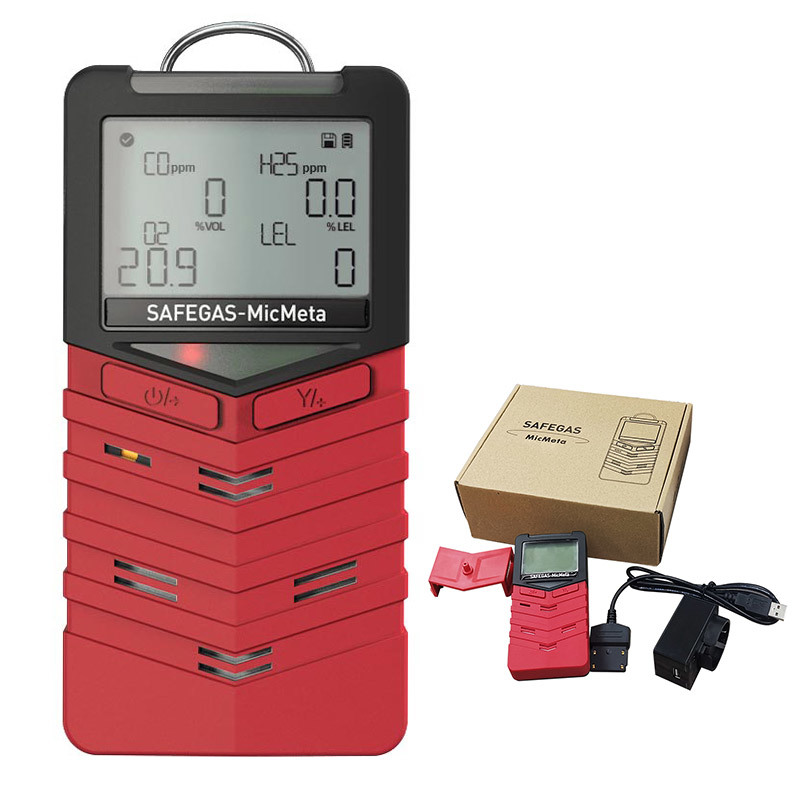

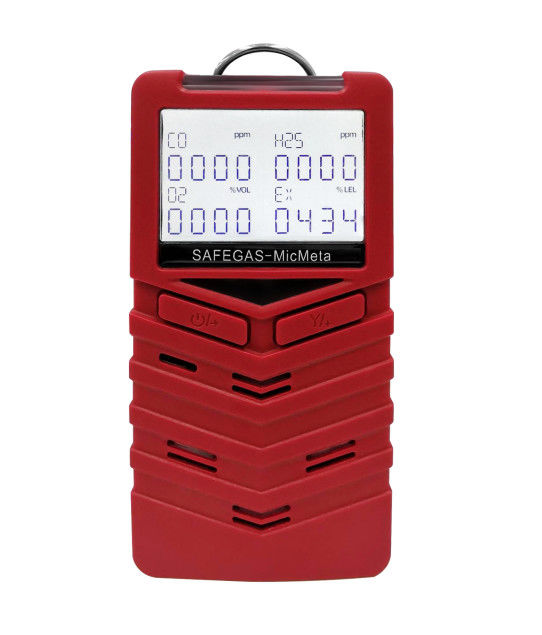

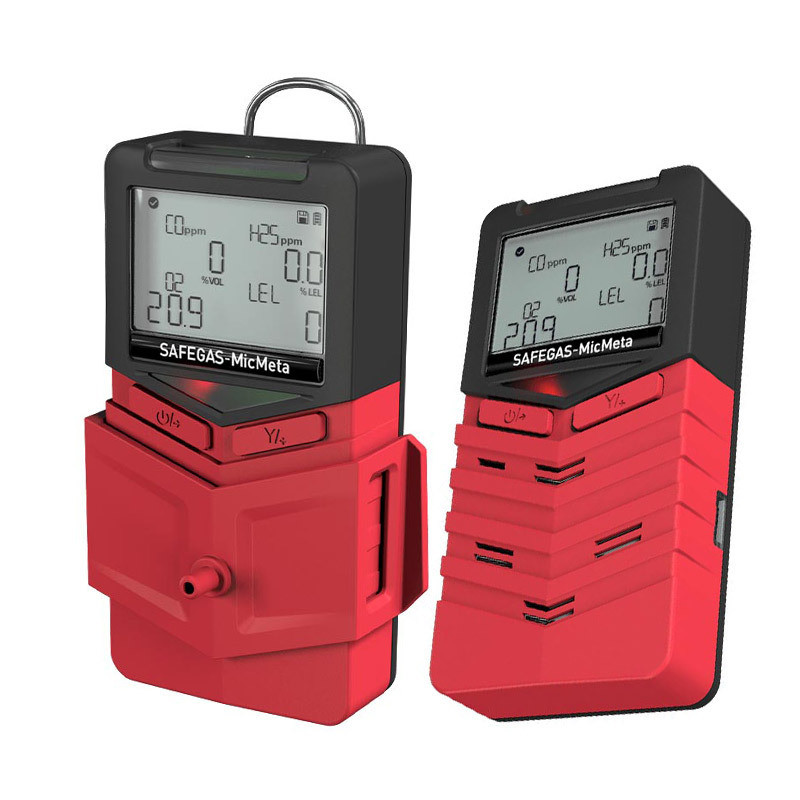

IECEX Certified Multi Gas Detector with IP66/IP68 Protection
Safegas Portable Multi Gas Detector - Lightweight, IECEX certified, IP68 drop resistant with diffusion suction and back clip
Product Overview
The MicMeta multi-gas detector features IP66/IP68 protection and can simultaneously detect 1-4 gases. With conventional range gases CO and H2S, it can detect up to 5 gases simultaneously.
Certified with three explosion-proof certifications: IECEX, ATEX, and China Explosion-proof. Explosion-proof level Ex ia IICT4 Ga/Ex ia I Ma allows use in both Zone 0 and Zone 1 hazardous areas.
Features an LCD screen with Chinese/English language switching, gas unit conversion, two-level sound and light alarms with customizable settings, optional PC software for data download, and docking station for bump testing, calibration, and configuration.
Product Advantages
Compact and Lightweight
Small size, lightweight (240g), robust and durable construction withstands drops up to 1.5 meters with IP66/IP68 waterproof and dustproof protection.
User-Friendly Operation
Simple two-button operation for easy use and intuitive control.
Bright Visual Alarm
Wide-angle visual alarm bar for increased visibility in various conditions.
EMC Tested
Successfully passed EMC anti-static interference tests for reliable operation in diverse environments.
Ergonomic Design

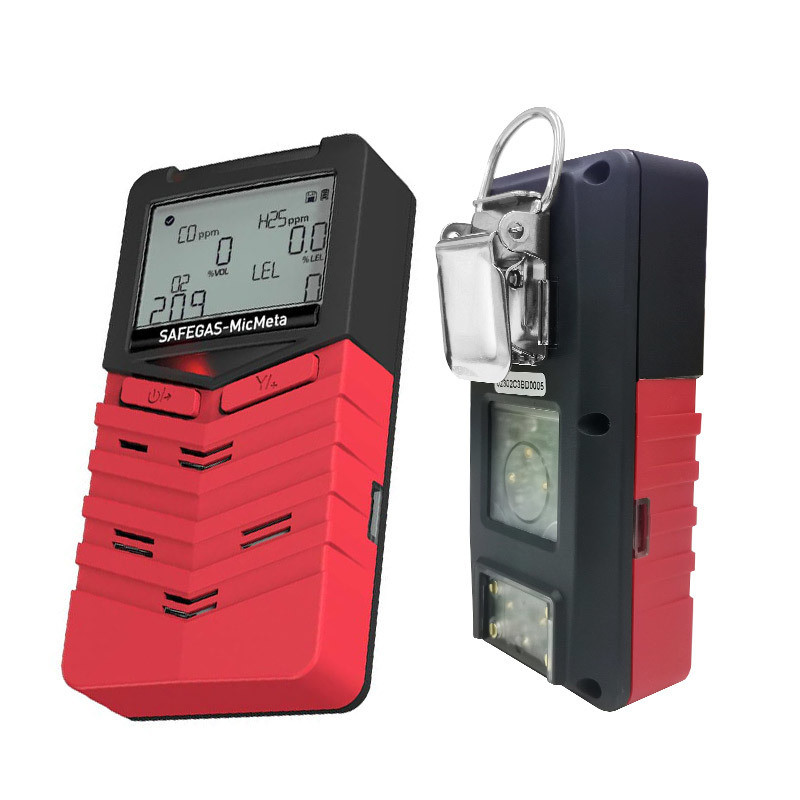

Comfortable, wear-resistant back clip for lightweight, easy carrying during extended use.
Technical Specifications
| Parameter | Specification |
|---|
| Sampling method | Diffusion suction |
| Gas type | Customizable, detects up to 5 gases |
| Measure range | Customized |
| Resolution | Customized |
| Response time | ≤60S (T90) |
| Precision | ≤±5%FS or ±10% (depends on specific sensor) |
| Language | Chinese/English |
| Automatic functions | Auto-test, calibration, auto-zero, MAX, MIN, STEL, TWA values |
| Unit display | PPM and mg/m³ switchable with automatic conversion |
| Display | Segment code LCD display |
| Calibration platform | DKM-MicMeta docking station (optional) |
| Data record | 1000 sets data records, 100 sets events records |
| Alarm system | 95dB buzzer, vibration, flashing red bar, on-screen alarm status, diagnostic alarms, battery undervoltage, man down alarms |
| Battery | 3.7V rechargeable lithium battery, 2300mAh capacity |
| Working hours | Standby time 18h, charging time <6h |
| Wireless transmission | Bluetooth (optional), Lora (optional) |
| Explosion-proof grade | IECEx: Ex ia IIC T4 Ga, Ex ia I Ma
ATEX: II 1G Ex ia IIC T4 Ga, Ex ia I Ma |
| Protection grade | IP66/IP68 |
| Working temperature | -20°C~55°C |
| Humidity | 0-95%RH (non-condensing) |
| Environmental pressure | 86～106Kpa |
| Size | 113*60*32mm (length * width * height) |
| Weight | 200g (with lithium battery) |
Detectable Gases
Micmeta can detect 1-5 gases including various combustible and toxic gases with customizable configurations.
Applications
- Chemical Industry
- Environmental Monitoring
- Healthcare Applications
- Automotive Industry
- Industrial Safety
- Wastewater Treatment
- Greenhouse Gas Monitoring
- Oil and Gas Exploration
- Food and Beverage Production
- Mining and Mining Operations
Why Choose Safegas?
- R&D team experience: over 25 years
- Company certification: ISO9001, ISO45001
- Product certification: IECEx (the only one in China), ATEX, CE
- Delivery: 5-7 days
- Yearly capacity: 80,000 units
- Service: Professional sales staff provide 7*24 hours service
Company Profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production and sales of gas detection equipment and systems for 16 years. With gas detectors as core products, we provide complete production lines and solutions for various industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture and Forestry, and Household Appliances.
Product Line
Portable Types
Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
Fixed Types
YT-95H, YT-98H, YT-96H, SG100, SG200
Controller Panels
YT-1100H, YT-1600H
Certifications
IECEX, ATEX, CE, TEST Report, ISO 9001, ISO 45001
Our products have obtained international explosion-proof certifications from IECEX and ATEX, ensuring product quality comparable to international brands like Honeywell, MSA, RAE, with competitive pricing.
Corporate Clients
Huawei, Coca-Cola, Samsung, Nestlé and more.
Frequently Asked Questions
Q1: What is a gas detector?
A1: A gas detector is an instrument for detecting gas leakage concentration, including portable gas detectors and fixed gas detectors.
Q2: What does a gas detector detect?
A2: Combustible gases: Natural gas (methane), liquefied gas, coal gas, acetylene, pentane, alkynes, toluene, etc. Toxic gases: Carbon monoxide, hydrogen sulfide, ammonia, chlorine, phosphine, sulfur dioxide, hydrogen chloride, chlorine dioxide and other toxic and harmful gases.
Q3: What is the ppm unit of the gas detector?
A3: ppm represents the volume concentration of the gas, meaning the volume of pollutants contained in one million volumes of air. For example, if the concentration of ammonia is 30ppm, it means that the volume of ammonia in one million volumes of air is 30.
