Portable CH4O Gas Detector with 15 Hours Working Time 100000 Data Records and 1%LEL Resolution

Informacion basica
Lugar de origen: PORCELANA
Nombre de la marca: SAFEGAS
Certificación: ATEX/EMC/IECEX
Número de modelo: Sky3000
Cantidad de orden mínima: 1
Precio: Negociable
Detalles de empaquetado: Maleta de aluminio
Tiempo de entrega: 3 días de trabajo
Condiciones de pago: T/t, unión occidental
Capacidad de la fuente: 1000 piezas por mes
Información detallada
Tipo de gas: El CH4O Método de muestreo: Succión de la bomba
Rango de medida: 0-100%LEL Resolución: 1%LEL
Certificación: CE,ATEX,IECEx,ISO Idioma: Chino/inglés/ruso/personalizado
Modo de alarma: Buzzer, LED y vibración Fuerza: Con batería de litio recargable de 3.7V
Hora de trabajo: Más de 15 horas (con la bomba en funcionamiento) Registro de datos: Puede almacenar 100000 datos de conjuntos
Tamaño de paquete único:: 34cm*24 cm*14cm Peso bruto único:: 1.64 kg
Resaltar:

15 Hours Working Portable Gas Detector

,

100000 Data Records Multi Gas Detector

,

1%LEL Resolution CH4O Gas Detector


Descripción de producto

Portable CH4O Gas Detector 0-100%LEL with IECEx and ATEX Explosion Proof Certification
Key Specifications
Feature Specification
Sampling method Pump suction
Gas type CH4O
Measure range 0-100%LEL
Resolution 1%LEL
Response time ≤10 seconds
Precision ≤±1%F.S
Language English (Other languages can be customized)
Automatic functions Test and calibrate after power-on including reset, MAX, MIN, STEL, TWA values
Unit options PPM and mg/m³ switchable
Display Monochrome graphics (160 x96), auto-flipping screen
Backlight Manually settable, auto-on during alarms
Data record 100,000 data sets storage, adjustable interval (5-3600 seconds), exportable
Alarm system 95dB buzzer, vibration, flashing red LED, screen indication, diagnostic alarms, battery undervoltage, pump block, man down with early warning, optional Bluetooth notification
Battery 3.7V 2200mAh rechargeable lithium
Working time 15+ hours continuous pumping
Charger Travel charger with DC interface (≥4 hours charging)
Explosion-proof grade IECEX/ATEX(II IG Ex ia IIC T4 Ga), CNEX:Ex ia IIC T4 Ga
Certifications 2004/108/EC(EMC), 1995/5/EC(Radio), 94/9/EC(ATEX)
Protection grade IP67/IP68
Operating conditions -20ºC to +50ºC, 0-90%RH (no condensation), 86-106Kpa
Dimensions 157×84.5×59.5mm (including accessories)
Weight 365g (including battery and accessories)
Bluetooth (Optional) Real-time data transmission to mobile/PC for O2, LEL, H2S, CO, CO2
SKY3000 Portable Gas Detector

The SKY3000 series is a high-performance portable gas detector capable of simultaneous detection of multiple gases (Oxygen compounds, VOC, combustible and toxic gases) with man down alarm functionality. The device features intuitive operation including one-key security detection, automatic storage, screen flipping, and optional Bluetooth transmission for real-time data monitoring.

Certified to international IECEX and ATEX explosion-proof standards with IP67 protection rating, the SKY3000 features antistatic protection, modular design for rapid detection, and ergonomic portability. The instrument primarily operates in suction mode with automatic failover to diffusion sampling when required.

With explosion-proof grade Ex ia IIC T4 Ga, the SKY3000 is suitable for Zone 0, 1, and 2 hazardous areas with gas groups ⅡA, ⅡB, ⅡC and temperature classes T1-T4.

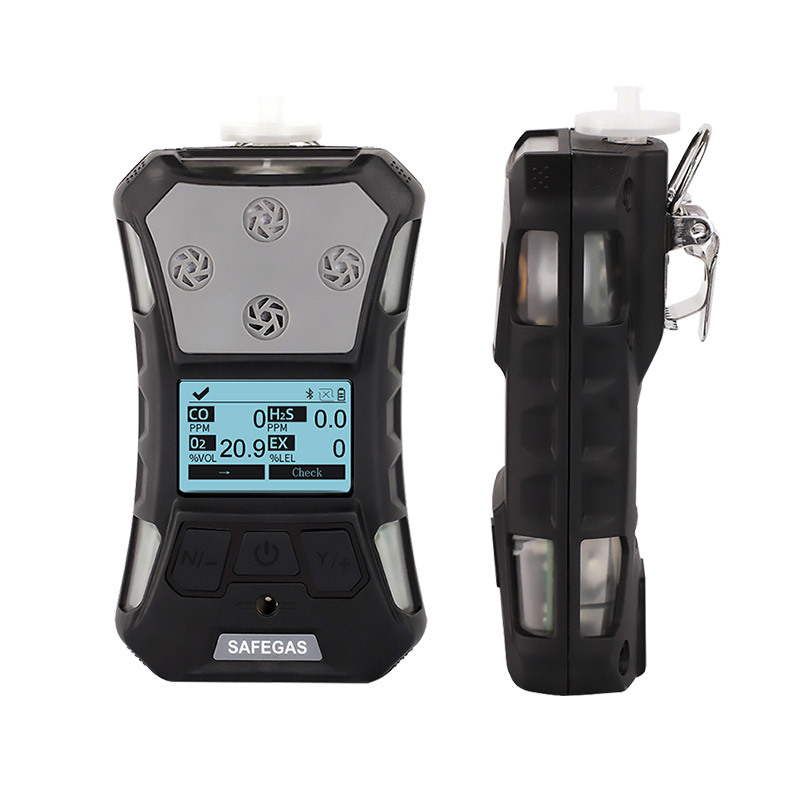

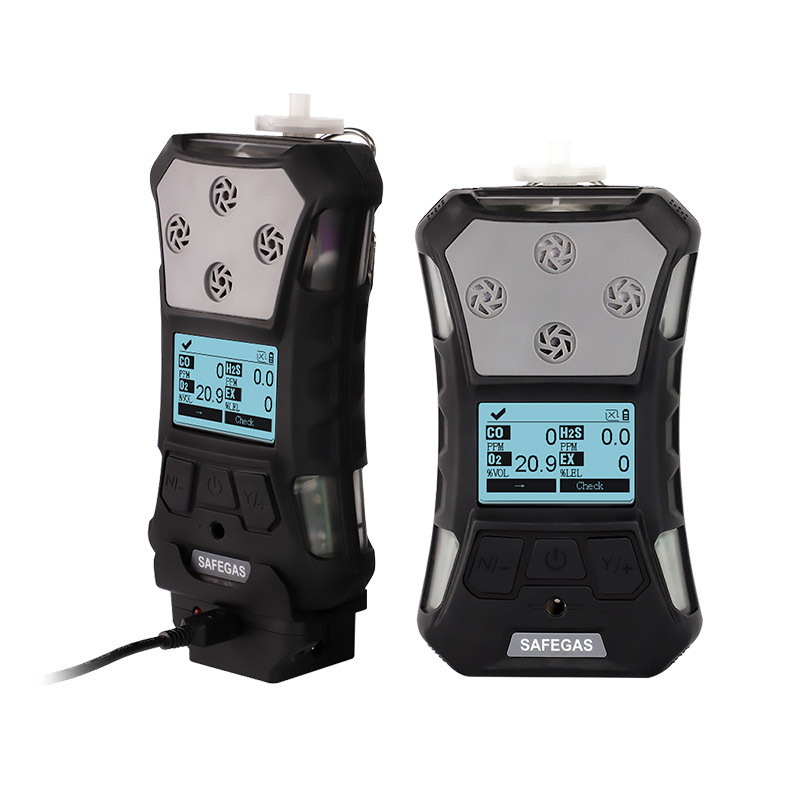

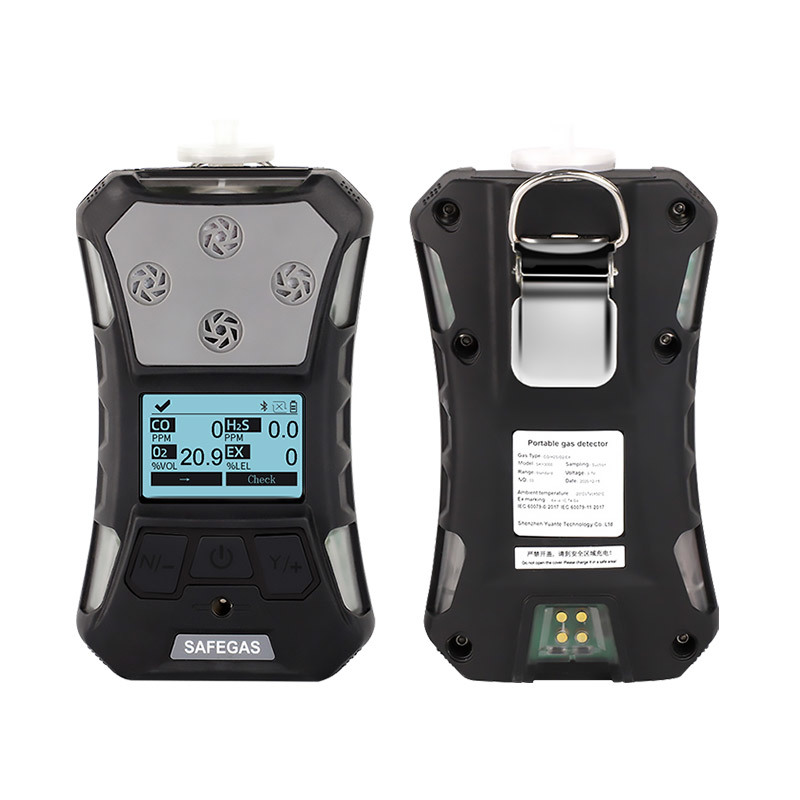

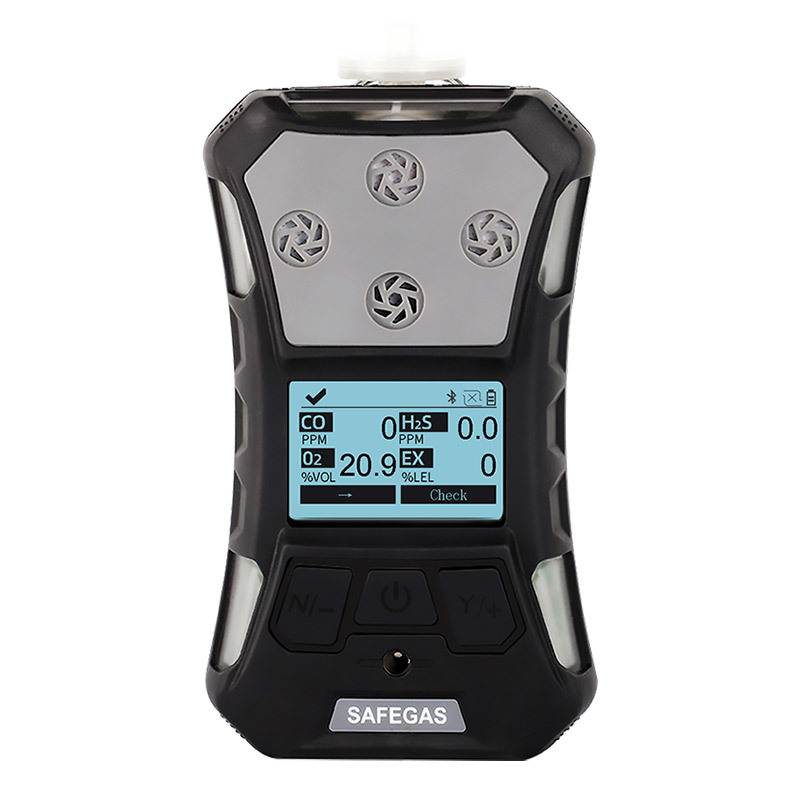

Product Images
Portable CH4O Gas Detector with 15 Hours Working Time 100000 Data Records and 1%LEL Resolution 0 Portable CH4O Gas Detector with 15 Hours Working Time 100000 Data Records and 1%LEL Resolution 1 Portable CH4O Gas Detector with 15 Hours Working Time 100000 Data Records and 1%LEL Resolution 2 Portable CH4O Gas Detector with 15 Hours Working Time 100000 Data Records and 1%LEL Resolution 3 Portable CH4O Gas Detector with 15 Hours Working Time 100000 Data Records and 1%LEL Resolution 4 Portable CH4O Gas Detector with 15 Hours Working Time 100000 Data Records and 1%LEL Resolution 5
Applications

This industrial-grade gas detection solution is widely used in:

  • Petrochemical & Chemical Industry
  • Municipal Engineering & Utilities
  • Agricultural & Environmental Protection
  • Electronics Manufacturing
  • Food & Pharmaceutical Industry

Portable CH4O Gas Detector with 15 Hours Working Time 100000 Data Records and 1%LEL Resolution 6 Portable CH4O Gas Detector with 15 Hours Working Time 100000 Data Records and 1%LEL Resolution 7 Portable CH4O Gas Detector with 15 Hours Working Time 100000 Data Records and 1%LEL Resolution 8 Portable CH4O Gas Detector with 15 Hours Working Time 100000 Data Records and 1%LEL Resolution 9
Standard Configuration
  • Gas detector (1 unit)
  • 12V/1A DC power adapter (1 unit)
  • USB cable (1 unit)
  • User manual (1 copy)
  • Warranty card (1 copy)
  • Filter (1 unit)
  • Aluminum carrying case (1 unit)
Why Choose Our Product?
  • 25+ years R&D team experience
  • Company certifications: ISO9001, ISO45001
  • Product certifications: IECEx (China exclusive), ATEX, CE
  • Fast delivery: 5-7 days
  • Annual production capacity: 80,000 units
  • Professional 24/7 customer support
Company Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in gas detection equipment design, manufacturing, and sales with 16 years of industry experience. Our comprehensive product line serves oil, chemical, pharmaceutical, energy, environmental, electronics, municipal, agricultural, and household applications.

Product Line

Portable: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
Fixed: YT-95H, YT-98H, YT-96H, SG100, SG200
Controllers: YT-1100H, YT-1600H

Portable CH4O Gas Detector with 15 Hours Working Time 100000 Data Records and 1%LEL Resolution 10
Certifications

IECEX, ATEX, CE, TEST Report, ISO 9001, ISO 45001 certified. Our products meet international safety standards comparable to Honeywell, MSA, and RAE at competitive pricing.

Portable CH4O Gas Detector with 15 Hours Working Time 100000 Data Records and 1%LEL Resolution 11
Trusted By Industry Leaders
Portable CH4O Gas Detector with 15 Hours Working Time 100000 Data Records and 1%LEL Resolution 12
FAQ
Portable CH4O Gas Detector with 15 Hours Working Time 100000 Data Records and 1%LEL Resolution 13 Portable CH4O Gas Detector with 15 Hours Working Time 100000 Data Records and 1%LEL Resolution 14
