Fixed 5-Gas Detector for LEL CO2 CO H2S O2 Pump Suction
Product Overview
The YT-98H/YT-98H-A Fixed Gas Detector is a built-in pump-suction single & multi gas detector with IECEx and ATEX certification. Featuring a non-contact magnetic wand design, it's suitable for installation and operation in explosion-proof areas and the Oil & Gas industry. The device offers 3-wire 4 to 20-mA output with relays, HART, and Modbus protocols for compatibility with most control systems. Optional wireless functionality allows remote data viewing on laptops, mobile phones, or cloud systems.
Key Features
- Detects up to 6 gases simultaneously, reducing multiple installations in complex environments
- 2.4-inch industrial-grade high-definition color screen (320*240 resolution, 120° viewing angle)
- Optional wireless module for cloud data upload with SMS alerts and unlimited transmission distance
- Internal suction pump for fast response times
- Full software automatic verification and zero calibration functions for reliable monitoring
- Standard 4-20mA current signal, RS485 modbus signal, and relay signal output

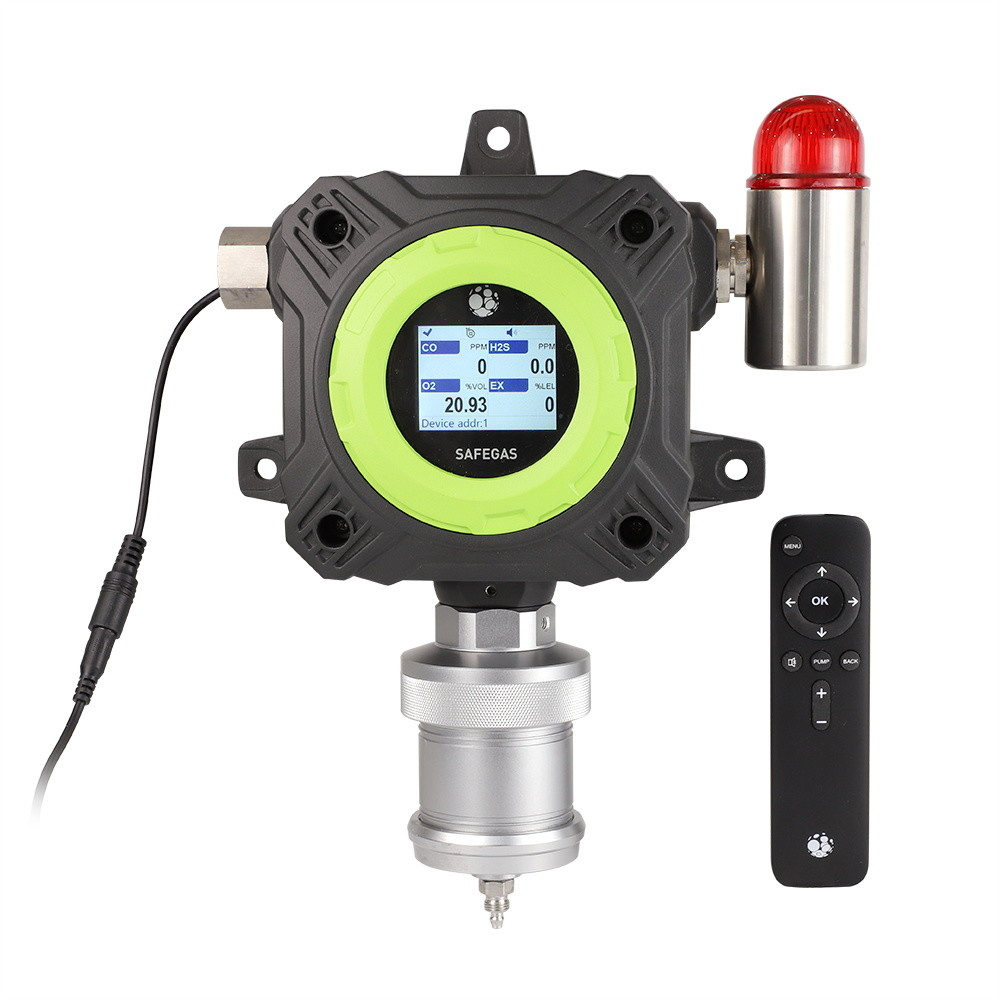

- Infrared remote control for detector operation and settings modification
- Optional sound and light alarm function when reaching alarm points
Product Images
YT-98H (with display)

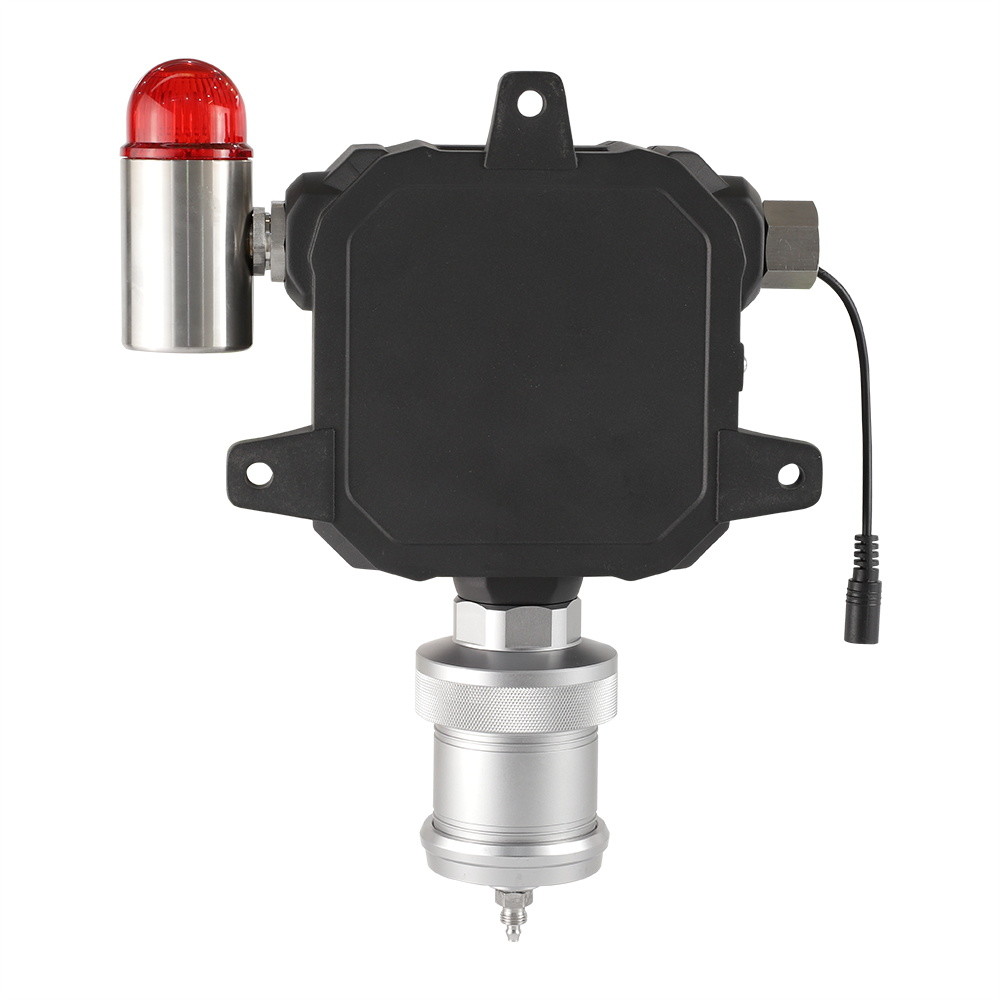

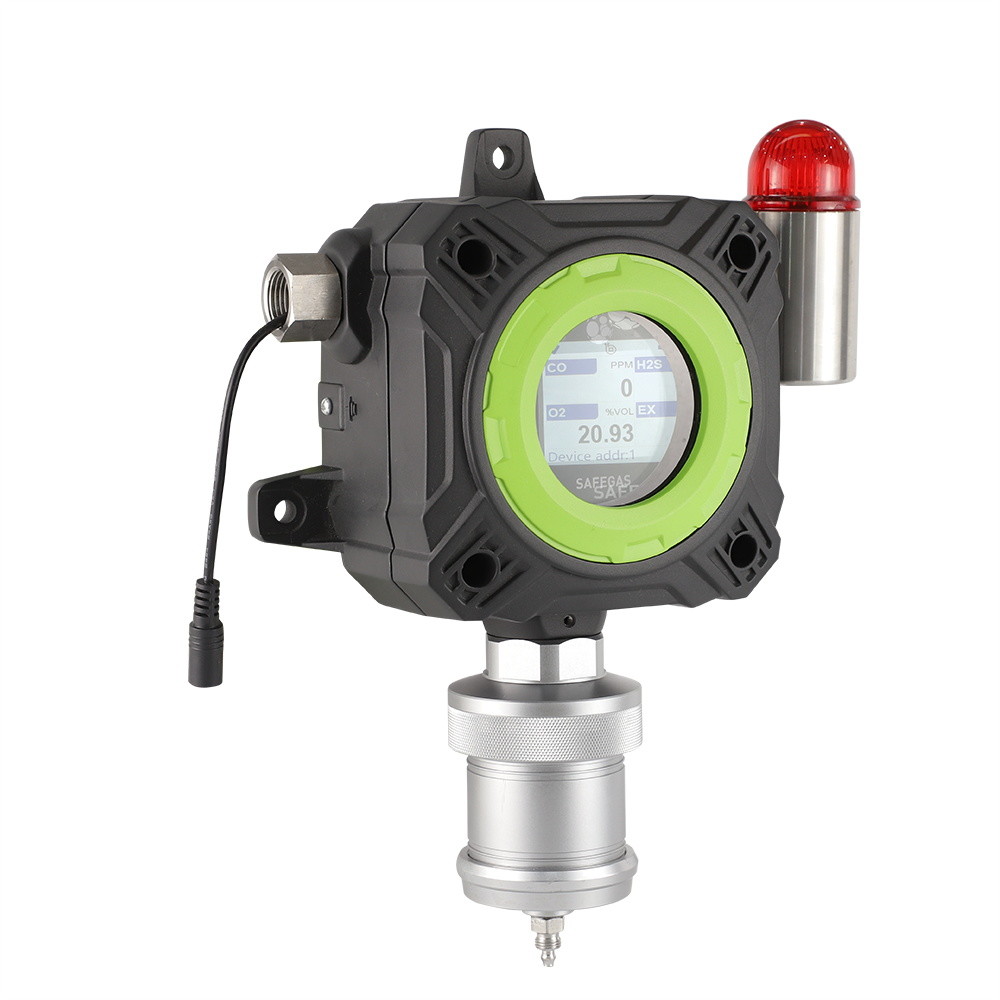

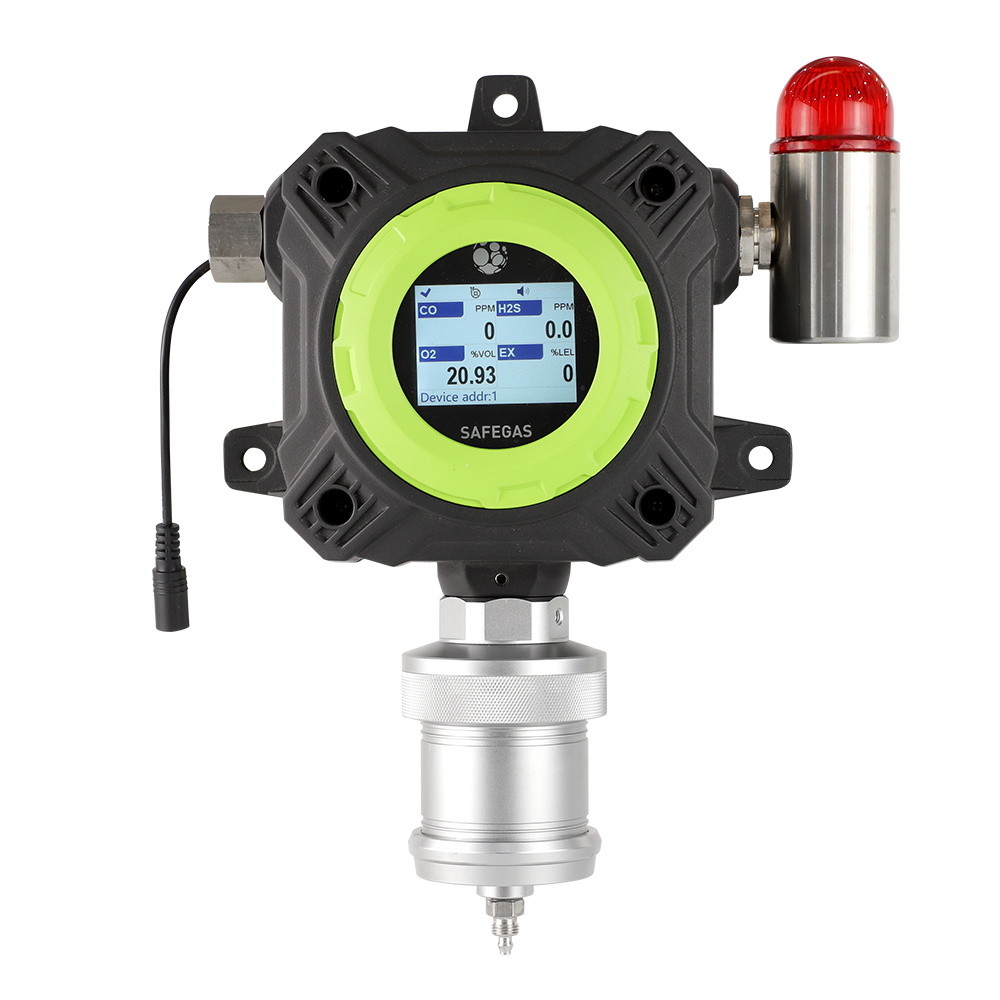

YT-98H-A (with display and alarm light)
Technical Specifications
| Gas Detected |
LEL, CO2, CO, H2S, O2 |
| Detection Principle |
Catalytic (LEL), Electrochemical (O2/CO/H2S), Infrared Ray (CO2) |
| Installation Method |
Wall-mounted, piping type, flow-type (according to detected environment) |
| Measure Range |
LEL: 0-100%LEL, O2: 0-30%vol, CO: 0-1000ppm, H2S: 0-100ppm, CO2: 0-5000PPM |
| Resolution |
LEL: 1%LEL, O2: 0.1%vol, CO: 1ppm, H2S: 0.1ppm, CO2: 0-5000PPM |
| Accuracy |
≤±2-5%FS (depending on specific sensor) |
| Signal Output |
4-20MA, RS485, relay |
| Response Time (T90) |
15-30s (depending on specific sensor) |
| Recovery Time |
≤10S |
| Repeatability |
≤±1% |
| Display |
2.4-inch color display, resolution 320*240 |
| Operating Language |
English/Chinese |
| Display Content |
Gas molecular formula, concentration, unit, pump status, etc |
| Temperature |
-20ºC~55ºC |
| Humidity |
0-95%RH |
| Explosion-Proof |
IECEX:Ex db IIC T6 Gb ATEX:Ex db IIC T6 Gb |
| Degree of Protection |
IP66 |
| Alarm Mode |
Sound, light |
| Operating Time |
24h |
| Dimensions |
43×27×15cm |
| Weight |
4.6kg |
Why Choose Our Product?
- R&D team with over 25 years of experience
- Company certifications: ISO9001, ISO45001
- Product certifications: IECEx (the only one in China), ATEX, CE
- Fast delivery: 5-7 days
- Annual production capacity: 80,000 units
- Professional sales staff providing 24/7 service
Company Profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems for 16 years. Focusing on "gas detector" as our core product, we offer complete production lines and solutions for various industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.
Product Line
- Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
- Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200
- Controller panels: YT-1100H, YT-1600H
Certifications
Our products have obtained international explosion-proof certifications including IECEX, ATEX, CE, TEST Report, ISO 9001, and ISO 45001. These certifications ensure product quality comparable to international brands like Honeywell, MSA, and RAE, but with more competitive pricing.
Our Partners
We are proud to have worked with industry leaders including Huawei, Coca-Cola, Samsung, Nestlé, and more.
