Portable Gas Analyzer for Flue Gas Detection
Professional instrument for coal combustion flue gas detection including SO2, CO, CO2, NOX, and VOC monitoring with high-temperature capability up to 1100°C.
Product Overview
The SKY8000 portable gas analysis instrument is engineered for industrial waste gas monitoring, air pollution source emission detection, boiler flue gas analysis, automobile exhaust testing, and indoor air quality assessment. This versatile analyzer can detect 1-18 different gases with flexible configuration options.
Featuring 1-3 selectable modules, each with its own dedicated pump, the internal modular structure enables separate air intake for different gases, effectively preventing cross-interference and ensuring measurement accuracy.

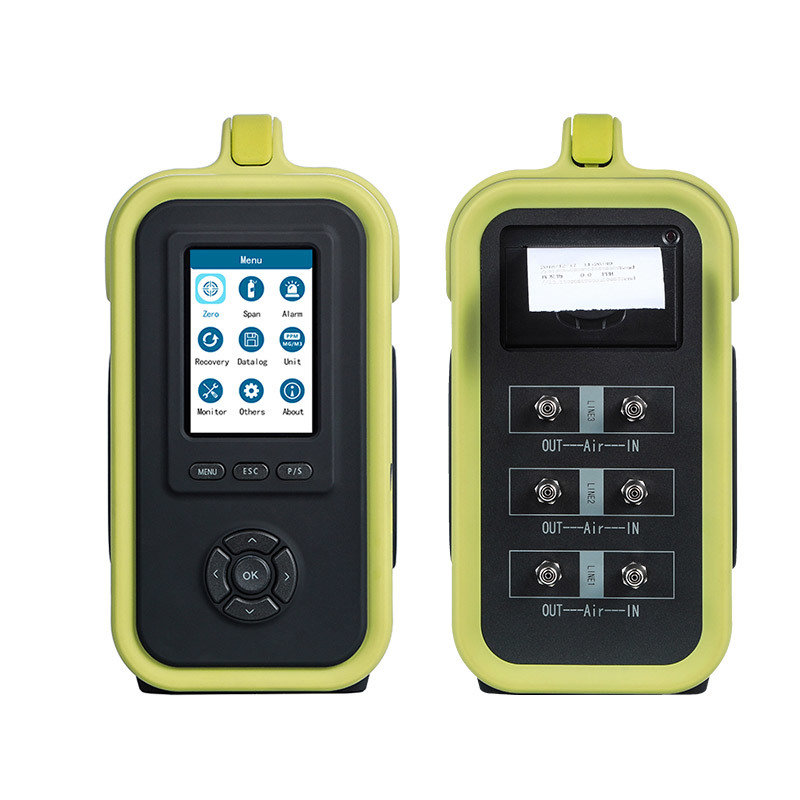

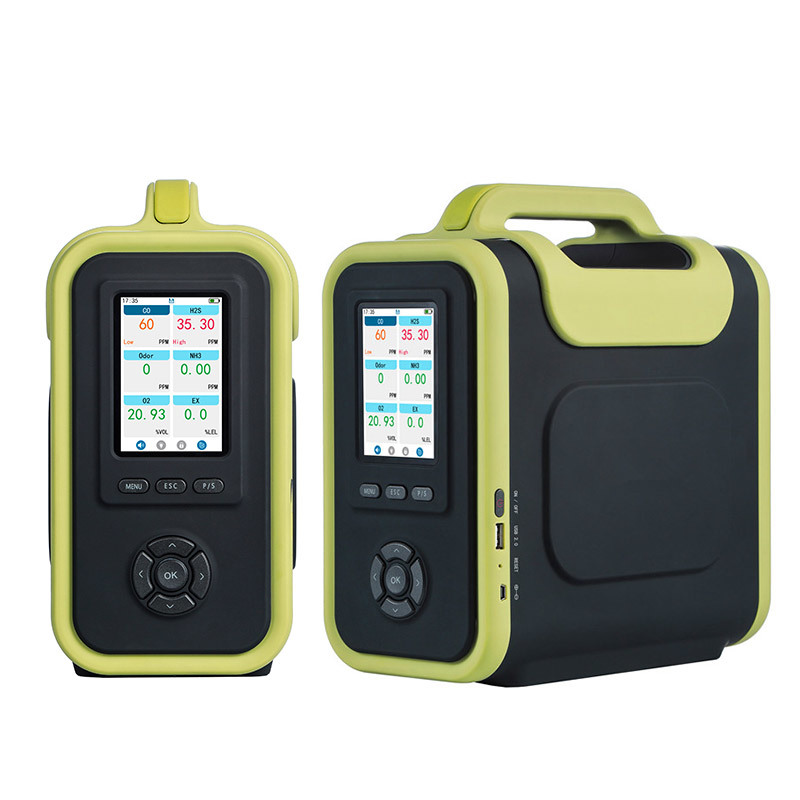

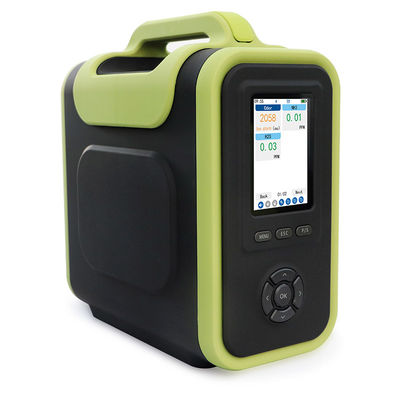

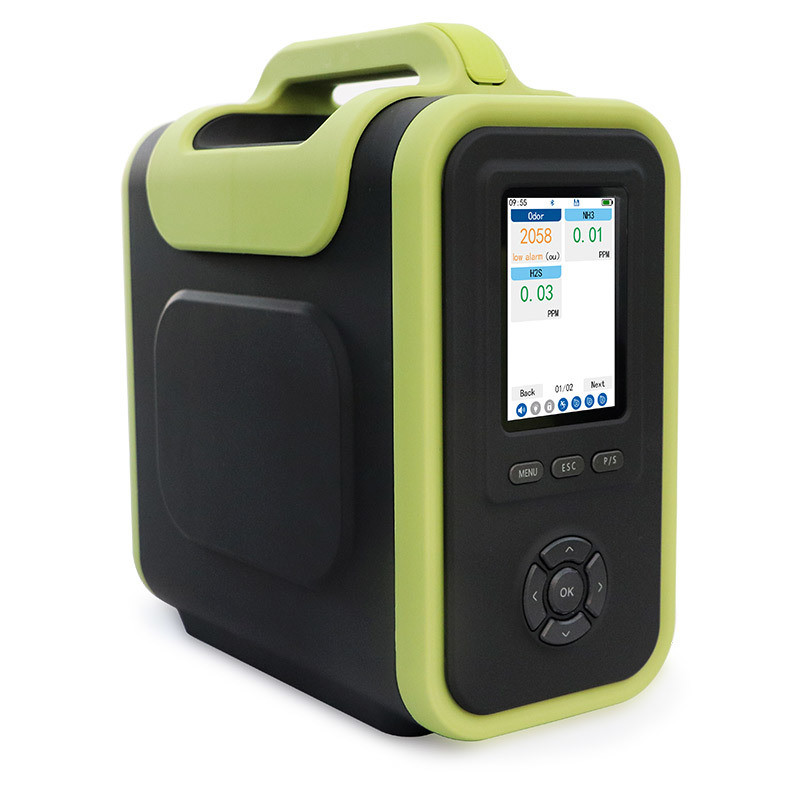

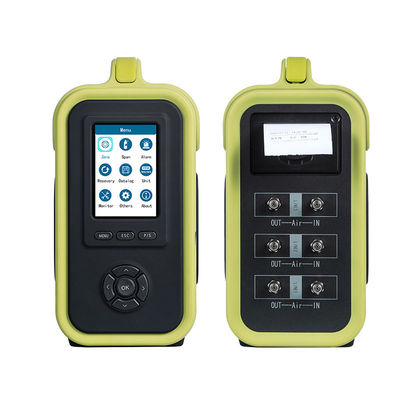

Product Images
Technical Specifications
| Sensors |
Electrochemical (CO, SO2, NOX), Infrared (CO2), PID photo ionization (VOC) |
| Gas Detection |
CO, SO2, NOX, CO2, VOC |
| Measurement Range |
CO: 0-20,000 PPM; CO2: 0-20% VOL; SO2: 0-5,000 PPM; NOX: 0-5,000 PPM; VOC: 0-5,000 PPM |
| Resolution |
CO: 1 PPM; CO2: 0.001% VOL; SO2: 1 PPM; NOX: 1 PPM; VOC: 1 PPM |
| Display |
Gas concentration data, measurement trend curves, battery status, time, temperature, humidity, pressure (optional), pump condition, wireless status, printer status |
| Alarm System |
Audible buzzer, red LED indicator, display alerts, fault detection, pump abnormal alarm, low battery warning |
| Data Storage |
Independent SD memory card up to 32GB, automatic recording with customizable time intervals |
| Data Transmission |
RS485 output, USB interface with PC software for data download, analysis, and printing |
| Print Function |
Optional internal portable printer or external Bluetooth printer |
| Charging |
Standard Mini-USB charging port with 13V/2A special charger (built-in printer) or 5V/2A universal charger |
| Language |
Chinese/English |
| Wireless Network |
Optional Bluetooth with 2.4G frequency and transmission distance under 10m |
| Probe Specifications |
Smoke environment requires high-temperature probe resistant to 600°C or 1000°C, available in 0.3m, 0.7m, and 1m lengths |
Key Features & Advantages
Advanced Display & Design
Features a 3.5-inch high-definition IPS LCD color screen with 150-degree wide viewing angle. The ergonomic chassis includes a carrying handle and is constructed from high-strength aviation-grade wear-resistant materials for durability in industrial environments.
Modular Internal Structure
Patented modular design with up to three independent detection modules, each capable of monitoring up to six gases. Separate air intake systems prevent cross-gas interference for enhanced accuracy.
High Customizability
Configurable with up to 18 sensors to meet specific monitoring requirements, including custom flue gas configurations supporting up to 9 simultaneous gas measurements.
Multi-Pump System
Advanced air supply system with up to three pumps that can be switched independently. Ten adjustable flow rate settings accommodate different environmental conditions while protecting sensor longevity.
Comprehensive Data Management
Standard 8G SD memory card provides up to seven years of continuous storage at 5-second intervals. Supports real-time data, alarm values, and historical trend analysis with export capabilities via USB.
Safety & Security Features
- Fall alarm protection for worker safety (optional)
- Password protection prevents unauthorized parameter changes
- Safety alert system for operator comfort
- High/low alarm lock function captures sudden gas concentration changes
User-Friendly Operation
- PPM/mg/m³ unit switching with automatic conversion
- Individual sensor factory reset capability
- Bilingual Chinese/English interface
- Programmable timed shutdown function
- Sensor overload automatic protection
- Optional built-in thermal printer for instant data printing
- Wireless communication for real-time monitoring via computer web client and mobile app
- High-temperature sampling probes available for environments up to 1200°C

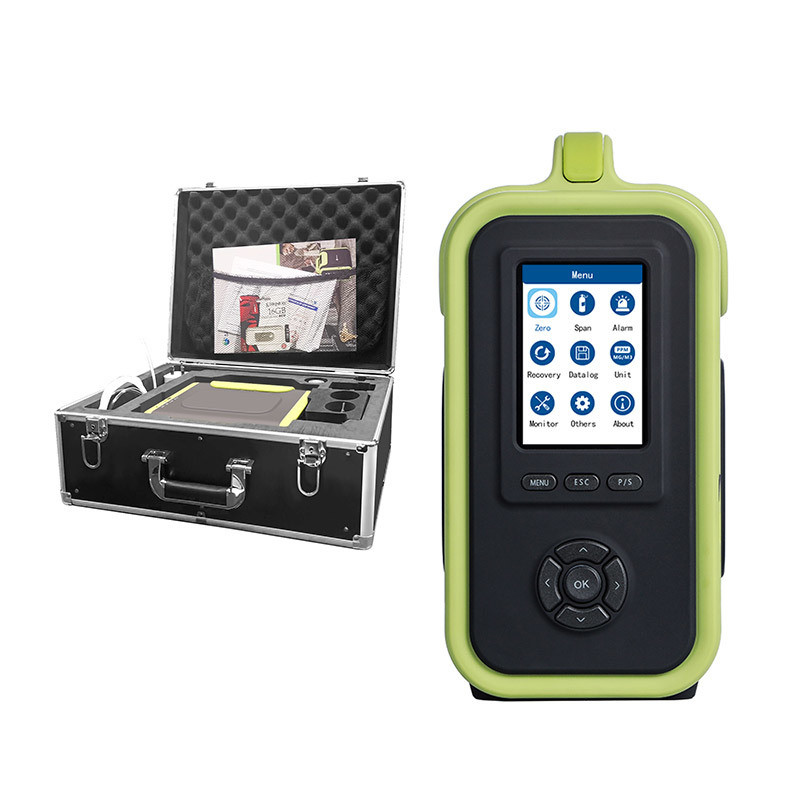

Standard & Optional Accessories
Standard Package Includes:
- User manual
- Certificate/warranty card
- 8G SD memory card (larger capacities available)
- Charging adapter
- Water trap filter
- Intake sampling probe
- 1000mm sampling hose
- Professional carrying case: non-toxic, odorless, explosion-proof, waterproof, heat-resistant, and corrosion-resistant
Optional Accessories:
- Built-in thermal printer
- High-temperature flue gas detector set
Why Choose Safegas?
R &D Experience: Over 25 years
Company Certifications: ISO9001, ISO45001
Product Certifications: IECEx (China exclusive), ATEX, CE
Delivery Time: 5-7 days
Annual Capacity: 80,000 units
Customer Service: Professional 24/7 support
Safegas specializes in environmental monitoring equipment and systems with 16 years of industry expertise. Our core gas detector products serve multiple sectors including Oil, Chemical, Pharmaceutical, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.
Our management philosophy centers on "Market orientation, Innovation motivation, Quality survival, Development growth." Through continuous R&D and adoption of advanced technologies, Safegas products meet international standards and compete effectively with global brands.
