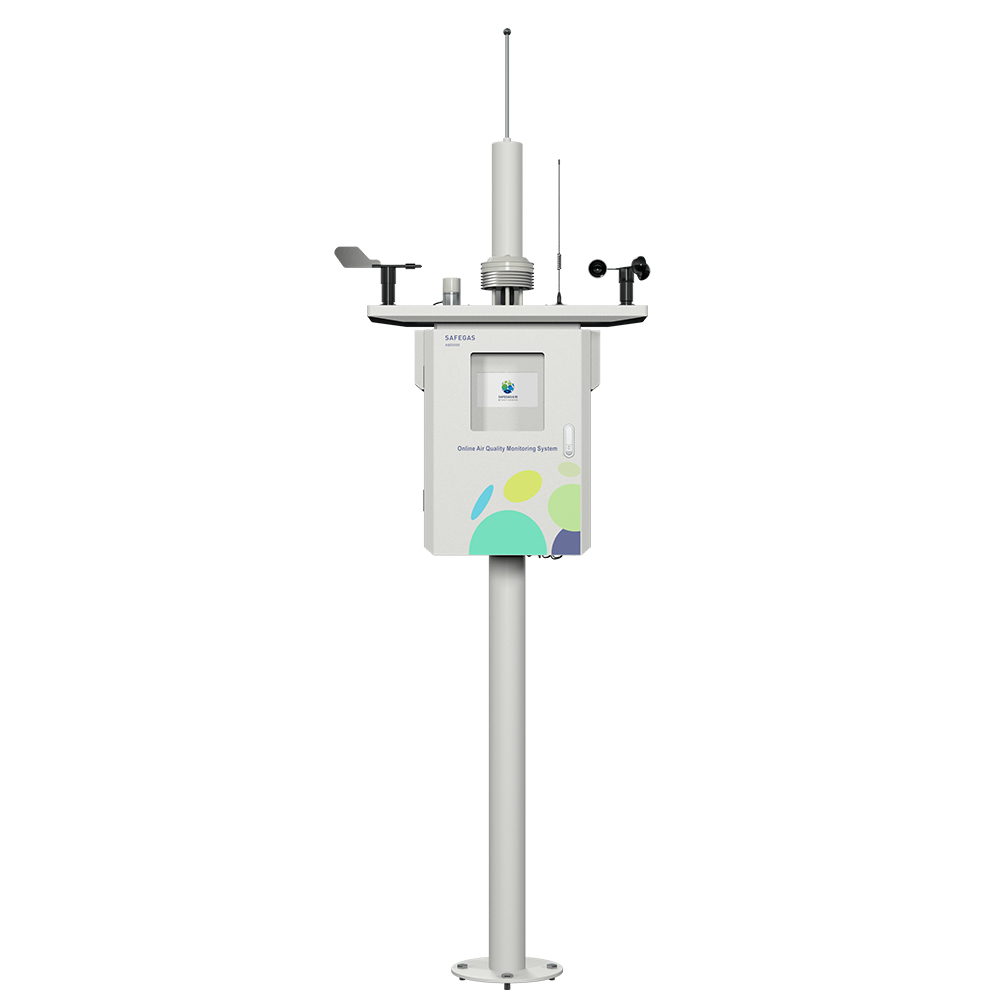

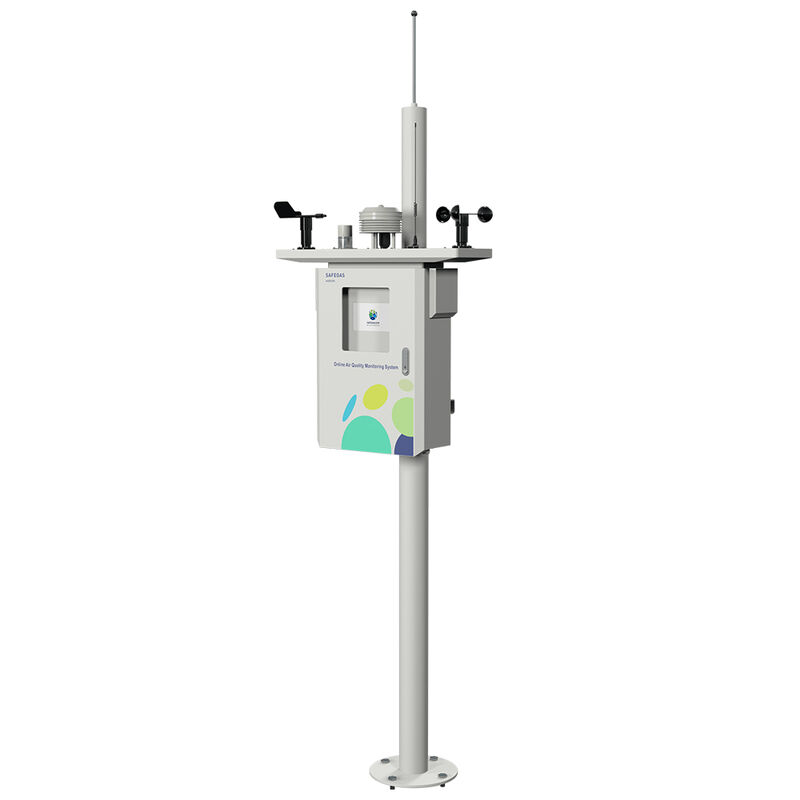

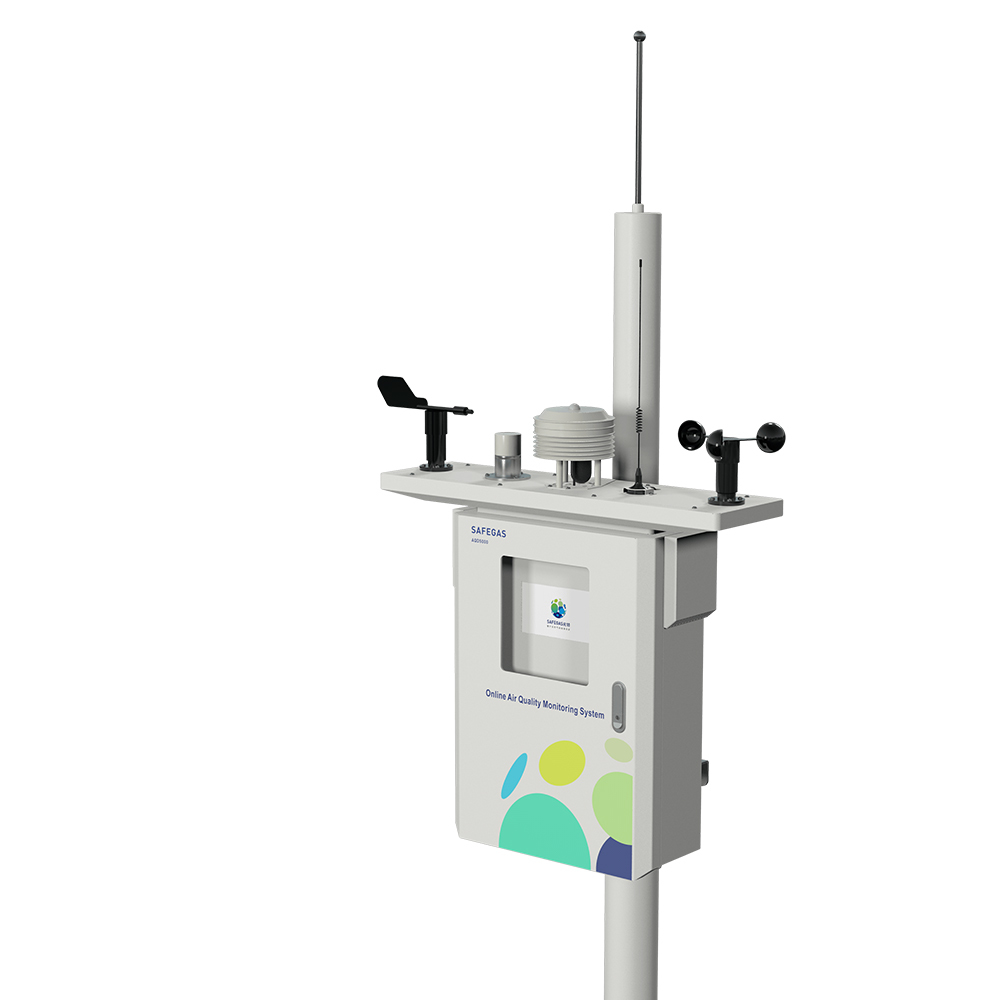

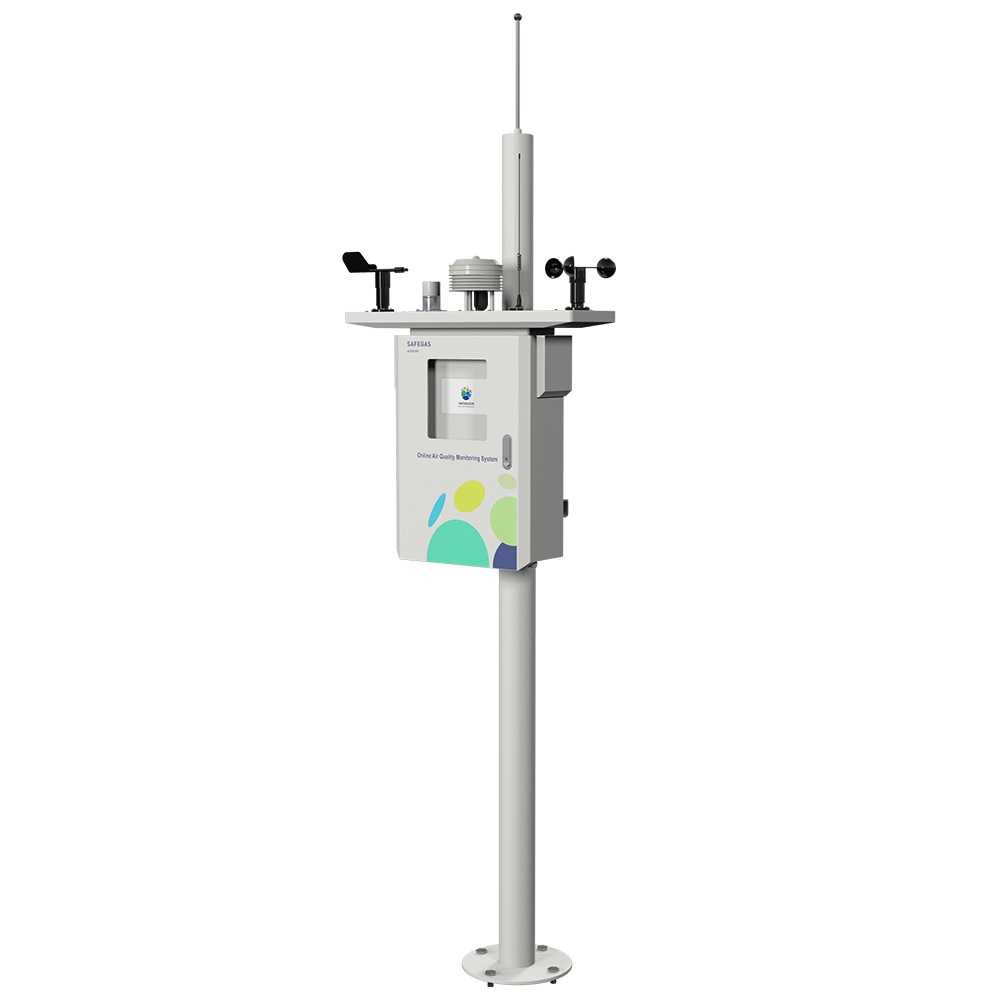

SAFEGAS AQD5000 Ambient Air Quality Monitoring System
Professional system for detecting gas concentration with high resolution, designed for industrial outdoor use.
Product Overview
The AQD5000 is a new generation of intelligent low-cost monitoring equipment, ideal for environmental monitoring departments conducting comprehensive air quality assessments. This advanced system is widely deployed for urban air quality monitoring and industrial emission pollution tracking.
The system simultaneously measures multiple environmental pollution gases, particulate matter, and meteorological parameters. It features RS485 signal transmission with data storage and export capabilities. Through wireless acquisition terminals, measurement data is transmitted to cloud platforms in real-time, enabling remote control and monitoring.
Key Advantages
- Multi-Parameter Monitoring: Simultaneously monitors 1-9 gas parameters with optional particle and meteorological measurement modules
- Rugged Outdoor Design: Professional protective shield provides excellent dust and rain protection, ensuring stable operation in extreme temperatures
- Extended Data Logging: Standard storage function maintains at least two years of monitoring data
- Continuous Operation: 7*24 hour uninterrupted operation with real-time data upload, self-diagnosis, and automatic restart
- Standard Connectivity: RS485 signal output with relay signal support
- High Accuracy & Reliability: 15 years of gas detection expertise using world-class sensors, with third-party verified detection results
Optional Features
- Outdoor LED display for real-time data viewing
- Solar power supply panel for operation without mains power
- Adapter card and PC software for concentration monitoring and historical data analysis
- 4G DTU and Lora wireless modules for real-time data transmission to environmental protection bureaus
- Camera integration for remote monitoring of dust concentration with video/image collection
Technical Specifications
| Gas Parameters |
Measured Parameters: Ozone, sulfur dioxide, nitrogen dioxide, formaldehyde, carbon monoxide, TVOC, etc.
Measuring Range: 0-1000ppb, 0-1000ppb, 0-1000ppb, 0-5ppm, 0-20ppm, 0-5ppm
Resolution: 1 ppb, 1 ppb, 1 ppb, 0.01ppm, 0.001ppm, 0.001ppm
Measuring Principle: Electrochemical, infrared, PID photo ionization
Detection Accuracy: ±3%
Response Time: ≤30S
|
| Particle Parameters |
Measured Parameters: PM2.5, PM10, PM0.3, PM1.0, PM10.0, TSP, etc.
Measuring Range: 0-1000ug/m³, 0-5000ug/m³
Resolution: 1ug/m³
Measuring Principle: Laser principle
Response Time: ≤30S
|
| Meteorological Parameters |
Measured Parameters: Temperature, humidity, wind speed, wind direction, air pressure, light intensity, noise, etc.
Measuring Range: -40°C~+120°C, 0~99%RH, 0~20m/s, 8 directions, 0~120Kpa, 0~200,000 Lux, 30dB~130dB
Resolution: 0.1℃, 1%RH, 0.1 m/s, 1 piece, 1 Kpa, 1Lux, 1dB
Measuring Principle: Thermocouple, mechanical principles
|
| Output Signal |
RS485, relay, 4G DTU (optional), LORA (optional), etc. |
| Sampling Method |
Pump suction |
| Pump Flow Rate |
0.5L/min (gas); 1.8L/min (particles/dust) |
| Display |
7-inch color touch screen |
| Power Supply |
220VAC, 0.1A |
| Working Current |
<100mA (Max) |
| Operating Conditions |
Temperature: -10℃～55℃; Humidity: 0-95%RH (non-condensing) |
| Alarm Type |
Sound and light alarm (optional) |
| Product Dimensions |
480*580*163mm (Excluding external sensors, rainproof beams, and mounting brackets) |

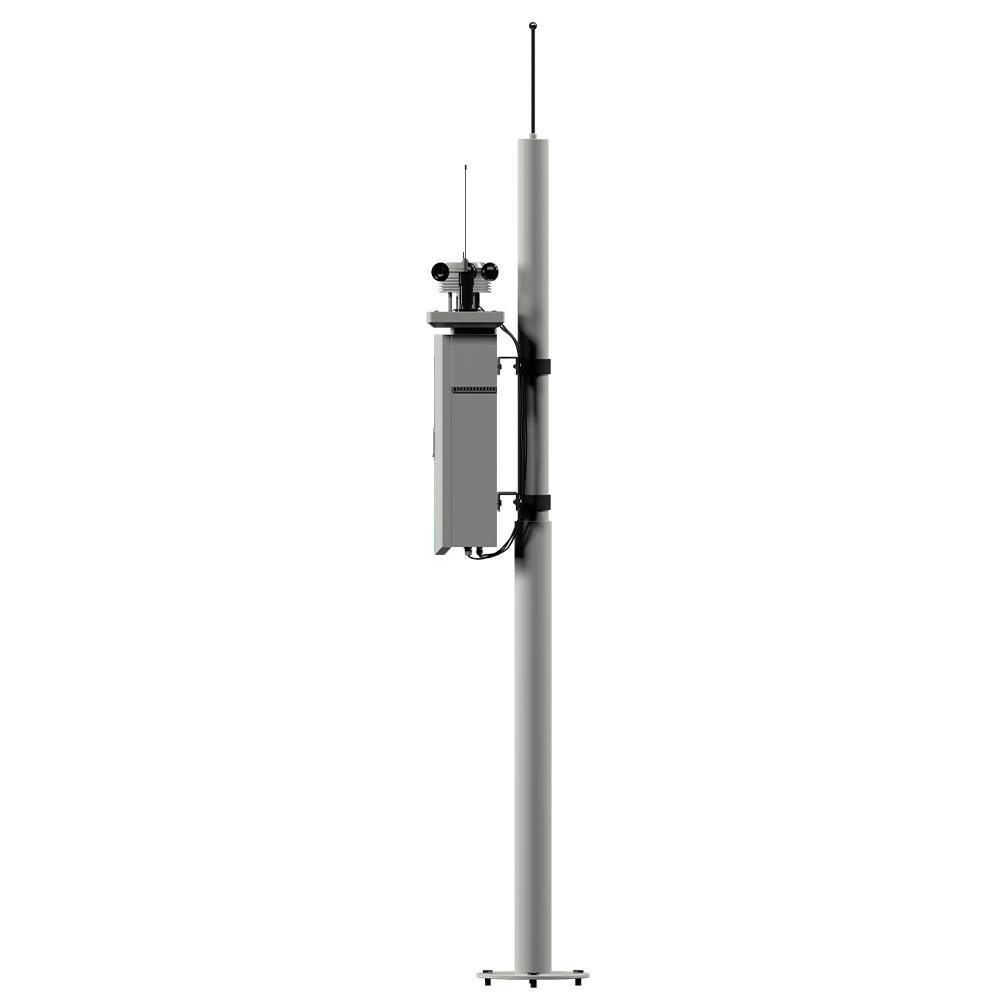

| Installation |
Ceiling or wall-mounted |
| Weight |
18kg |
| Warranty |
12 months |
Detectable Gases
The AQD5000 model can detect 1-9 different gases simultaneously, providing comprehensive air quality analysis.
Applications
- Urban air quality monitoring and trend analysis
- Grid monitoring by environmental management departments
- Air quality assessment in populated areas (communities, schools, hospitals)
- Industrial area monitoring (petrochemical plants, power plants, landfills, wastewater facilities)
- Transportation infrastructure monitoring (roads, airports, ports, railways, tunnels, construction sites)
- Open area monitoring (parks, woodlands, agricultural research)
- Particulate matter and pollution source emission monitoring
- Environmental quality assessment and compliance reporting
Manufacturing Excellence
As a professional gas detector manufacturer, we maintain complete control over the entire process from design and R&D through production and sales, ensuring consistent product quality.
Quality Assurance: Over 100 independent intellectual property patents; skilled technical workforce with complete industrial production line; 7*24h customer support.
Our R&D department brings 25 years of gas detection industry expertise, providing professional technical after-sales service.
Certifications: ISO9001 and ISO14001 certified for quality and environmental management systems.
Safety Standards: IECEx and ATEX explosion-proof certified for use in hazardous areas (mines, underground facilities, oil plants). We are the first and currently only Chinese manufacturer with this certification.
Core components including ICs and sensors utilize imported brands (Honeywell, CITY, Alpha) for enhanced accuracy, extended service life, and reliable customer safety protection.
Fast Delivery: Complete product line with stable inventory. Orders under 10 pieces typically ship within 3 days; orders over 100 pieces within half a month.
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional manufacturer specializing in gas detectors for over 10 years.
What is the minimum order quantity?
Typically 1 piece.
How about the quality of your products?
Our products use imported sensors and components, with full certification compliance.
How long is the warranty period?
Warranty is 1 year from factory date, with lifetime maintenance support.
